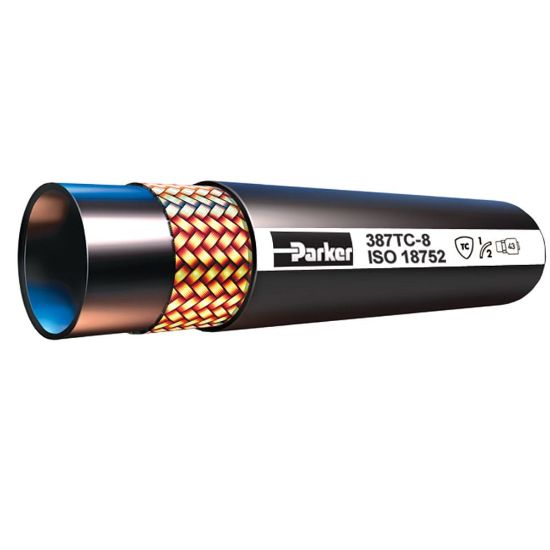

Hydraulic Constant Working Pressure Hose 3000 PSI - GlobalCore 387 Hose - 387-12

Name: Hydraulic Constant Working Pressure Hose 3000 PSI - GlobalCore 387 Hose - 387-12
SKU: 387-12

Part of Parker’s GlobalCore constant working pressure hose line, lightweight and flexible 387 hoses consistently deliver 3,000 PSI performance across markets and across the globe.

Availability:

Backordered

SKU 387-12

$11.25

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-12
Hose Cover Type	Standard Cover	Minimum Operating Temperature	-40 °C
Disclaimer	The user, through its own analysis and testing, is solely responsible for making the final selection of the system and components and assuring that all performance, endurance, maintenance, safety and warning requirements of the application are met.	Division	Hose Products Division
Maximum Operating Temperature	212 °F	Minimum Bend Radius	4-3/4 inch
Size	-12	Inside Diameter	19 mm
Cover Material	Synthetic Rubber	Hose Cover Type	Standard Cover
Compatible Fitting	43 Series	Hose Inner Tube Material	Synthetic Rubber
Hose Reinforcement Material	2 Braids of Steel Wire	Application	Lubricating Oils
Media	Petroleum Hydraulic Fluids	Weight	0.58 lb/ft
Outside Diameter	27.8 mm	Specifications Met	ISO 18752, Type AC
Maximum Operating Pressure	210 bar	Nominal Hose Inside Diameter	20 mm
