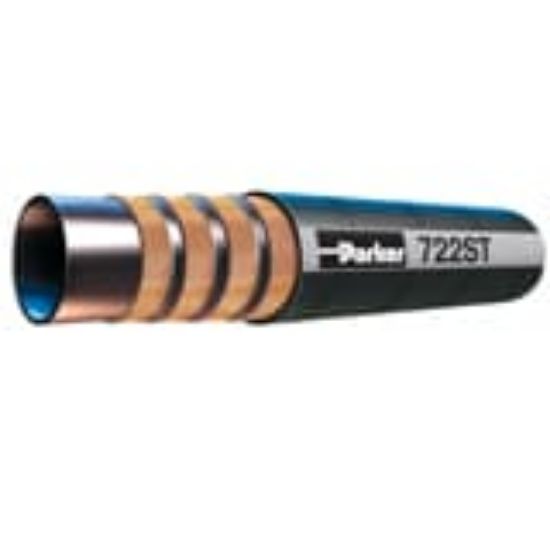

722-10 - Hydraulic Constant Working Pressure Hose 4000 PSI - GlobalCore 722 Hose

With 4,000 PSI constant working pressure hoses, half SAE bend radius, and three cover options, Parker’s 722 GlobalCore hose delivers maximum performance and efficiency.

Availability:	Backordered
Partner Available:	Backordered

SKU 722-10

$17.75/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-10
Hose Cover Type	Standard Cover	Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	212 °F	Minimum Bend Radius	4 inch
Media	Lubricants (Oils)	Cover Material	Synthetic Rubber
Hose Cover Type	Standard Cover	Inside Diameter	5/8 inch
Compatible Fitting	43 Series	Specifications Met	ISO 18752
Hose Inner Tube Material	Synthetic Rubber	Nominal Hose Inside Diameter	16 mm
Maximum Operating Pressure	28 MPa	Hose Reinforcement Material	4 Spirals
Outside Diameter	1.040 inch	Weight	0.74 lb/ft
