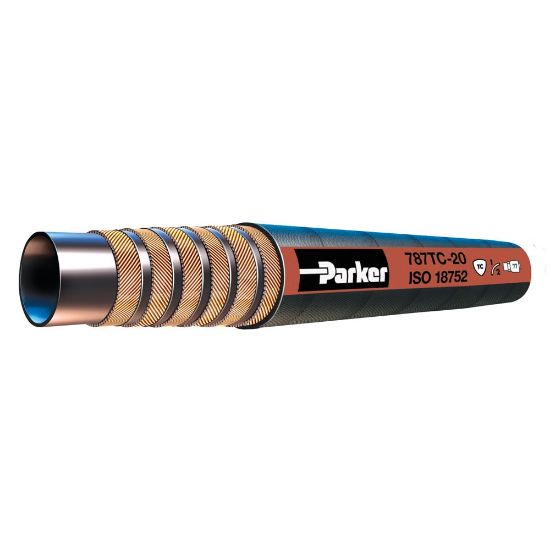

787-20 - Hydraulic Constant Working Pressure Hose 5000 PSI - GlobalCore 787 Hose

Part of the GlobalCore family of robust hydraulic hoses. Parker’s 787 hose delivers 5000 PSI constant working pressure in a lightweight and easy to bend product.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	478 in stock

SKU 787-20

$78.38/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-20
Hose Cover Type	Standard Cover	Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	212 °F	Maximum Operating Pressure	5000 psi
Size	-20	Media	Lubricants (Oils)
Cover Material	Synthetic Rubber	Inside Diameter	31.5 mm
Compatible Fitting	77 Series	Specifications Met	ISO 18752, Type BC
Minimum Bend Radius	8-1/4 inch	Hose Inner Tube Material	Proprietary Synthetic Rubber Compound
Weight	2.89 kg/m	Outside Diameter	44.9 mm
Hose Reinforcement Material	4 or 6 Spirals of Steel Wire Compact
