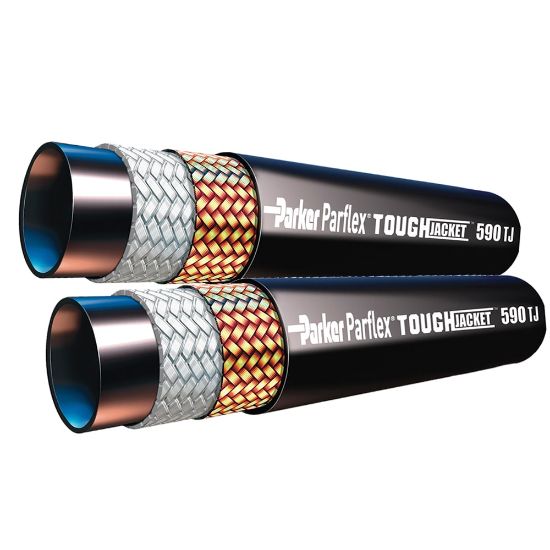

Picture of Hydraulic Hose - 590TJ - 590TJ-6-6

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hydraulic Hose - 590TJ - 590TJ-6-6

The TOUGHJACKET™ 590TJ compact hydraulic hose features working pressures from 5000-2000 psi, long continuous lengths (up to 500 feet) and is qualified to use with 56 Series Global Fittings. Exceptional abrasion resistance.
Availability:
Backordered
SKU 590TJ-6-6
$15.95
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTStandard Pack Qty (ft)250
Hose StyleTwin-lineHose I.D. (inch)3/8
Hose Reinforcement MaterialBraid of High Tensile Steel WireSpecifications MetMSHA
Size-6MediaPetroleum Hydraulic Fluids
Minimum Operating Temperature-40 °FMaximum Operating Temperature121 °C
Maximum Operating Pressure280 barWeight0.38 lb/ft
Design Factor4:1Product StyleTwin-Line
Compatible Fitting56 SeriesApplicationConstruction Equipment
Inside Diameter3/8 inchMinimum Bend Radius57.2 mm
DivisionParflex DivisionOutside Diameter1.280 inch
Hose Inner Tube MaterialCopolyesterHose Cover TypeToughJACKET™
Cover MaterialPolyurethane
