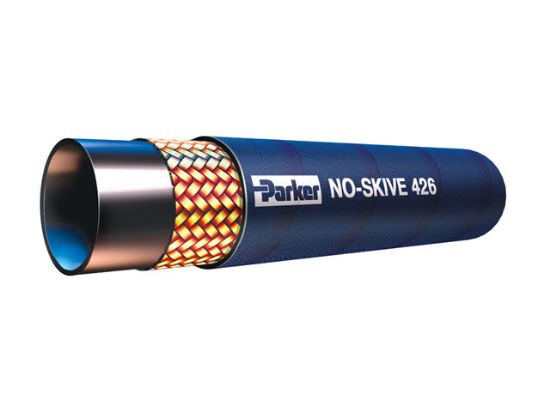

426-24 - Hydraulic Industry Standard High-Temperature Hose 375-2750 PSI – 426 Hose

Parker's 426 hose is a hydraulic industry standard hose that has a pressure range of 375-2750 PSI, which is designed for high-temperature applications.

Availability:	1 Limited Stock
Partner Available:	609 in stock Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 426-24

$44.78/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-24
Maximum Operating Temperature	302 °F	Maximum Operating Pressure	500 psi
Inside Diameter	1-1/2 inch	Compatible Fitting	43 Series
Hose Reinforcement Material	1 Braid of Steel Wire	Nominal Hose Inside Diameter	38 mm
Hose Inner Tube Material	PKR® Rubber	Minimum Operating Temperature	-50 °F
Specifications Met	SAE J1942	Media	Lubricants
Cover Material	MSHA Approved	Minimum Bend Radius	500 mm
Weight	1.46 kg/m	Outside Diameter	51 mm
Pkg Qty	50	Inner Diameter	1.5 Inch
UOM	FT	Material	Rubber
Pkg Qty/UOM	50 FT	Working Pressure	500 PSI (30 bar)
Parker Group	Fluid Connector	Inch/Metric	Inch
Parker Division	Hose Products	Inner Diameter Inch/mm	Inch
Inner Diameter	1.5 Inch	Material	Rubber
Working Pressure Range	500 to 999 PSI (34 to 69 bar	Application	Hydraulic
Hose Pressure Range	Medium	Hose Category	Hydraulic Industry Standard
Series	426	Distinct Properties	High Temperature
