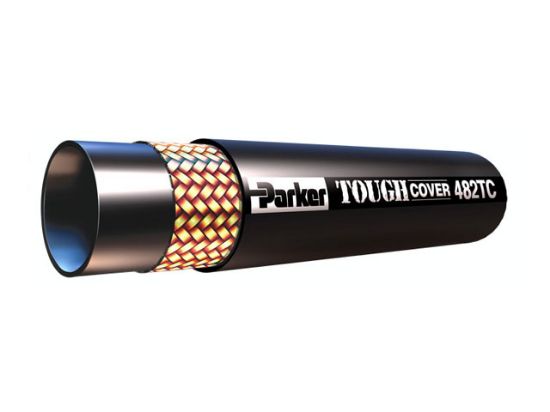

Hydraulic Industry Standard Hose 1275-3250 PSI – 482 Hose - 482TC-5

Name: Hydraulic Industry Standard Hose 1275-3250 PSI – 482 Hose - 482TC-5
SKU: 482TC-5

Parker's 482 hose is a hydraulic industry standard hose that has a pressure range of 1275-3250 PSI, with a synthetic rubber inner tube which provides wide fluid compatibility.

Availability:

Backordered

SKU 482TC-5

$7.65

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-5
Hose Cover Type	Tough Cover	Minimum Operating Temperature	-40 °C
Division	Hose Products Division	Maximum Operating Temperature	212 °F
Weight	0.18 lb/ft	Cover Material	Synthetic Rubber Abrasion Resistant
Compatible Fitting	43 Series	Hose Inner Tube Material	Synthetic Rubber
Hose Reinforcement Material	1 Braid of Steel Wire	Application	Lubricating Oils
Nominal Hose Inside Diameter	8 mm	Media	Petroleum Hydraulic Fluids
Minimum Bend Radius	55 mm	Inside Diameter	8 mm
Outside Diameter	0.590 inch	Specifications Met	EN 853, Type 1SN
Maximum Operating Pressure	22.7 MPa	Inner Diameter	0.313 Inch
Pkg Qty	250	Pkg Qty/UOM	250 FT
UOM	FT	Material	Rubber
Mating Fitting Series	43, 42	Working Pressure	3250 PSI (220 bar)
Parker Group	Fluid Connector	Inch/Metric	Inch
Parker Division	Hose Products	Inner Diameter	0.313 Inch
Inner Diameter Inch/mm	Inch	Material	Rubber
Working Pressure Range	3000 to 3999 PSI (207 to 276 bar)	Application	Hydraulic
Hose Pressure Range	Medium	Hose Category	Hydraulic Industry Standard
Distinct Properties	Tough Cover	Mating End Fitting Series	43, 42
Series	482TC

California Residents: Prop-65 Warning

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
