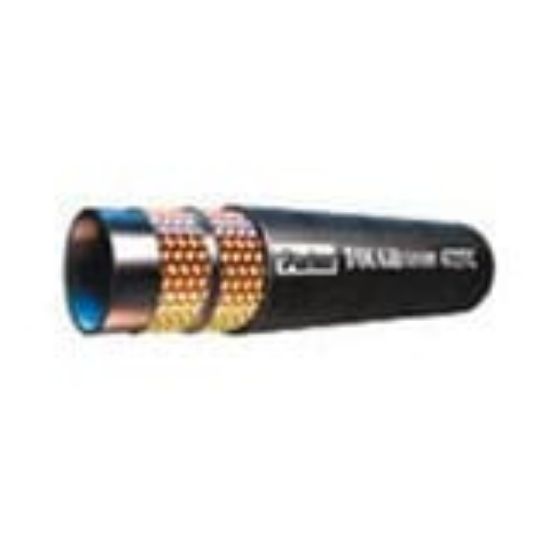

472TC-32 - Hydraulic Industry Standard Hose 1300-2250 PSI – 472TC Hose

Parker’s 472TC hose is a hydraulic industry standard hose that has a pressure range of 1300-2250 PSI, which allows for one to meet the specifications of any task at hand.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	661 in stock

SKU 472TC-32

$57.26/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-32
Minimum Operating Temperature	-40 °C	Maximum Operating Temperature	212 °F
Inside Diameter	2 inch	Hose Cover Type	Tough Cover
Outside Diameter	2.540 inch	Compatible Fitting	43 Series
Hose Inner Tube Material	Synthetic Rubber	Hose Reinforcement Material	2 Braids of Steel Wire
Nominal Hose Inside Diameter	51 mm	Media	Lubricants
Cover Material	MSHA Approved	Specifications Met	DNV
Maximum Operating Pressure	1300 psi	Weight	1.93 lb/ft
Minimum Bend Radius	315 mm
