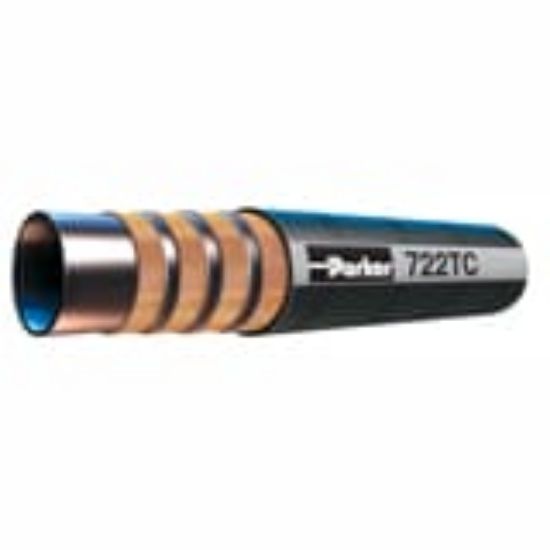

722TC-24 - Hydraulic Industry Standard Hose 2500-3000 PSI – 722TC/ST Hose

Name: 722TC-24 - Hydraulic Industry Standard Hose 2500-3000 PSI – 722TC/ST Hose
SKU: 722TC-24
Price: 59.43 USD
Availability: InStock

Parker’s 722TC/ST hose is a hydraulic industry standard hose that has a pressure range of 2500-3000 PSI, with a synthetic rubber inner tube providing a wider range of fluid compatibility.

Availability:

438 in stock

Olivette, MO	271
Wichita, KS	92
COLUMBIA, MO	35
Joplin, MO	34
Springfield, MO	5

Partner Available:

1118 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 722TC-24

$59.43/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-24
Hose Cover Type	ToughCover	Minimum Operating Temperature	-40 °F
Cover Material	Synthetic Rubber	Inside Diameter	38 mm
Hose Inner Tube Material	Synthetic Rubber	Nominal Hose Inside Diameter	38 mm
Maximum Operating Temperature	257 °F	Media	Petroleum Hydraulic Fluids
Minimum Bend Radius	250 mm	Specifications Met	USCG HF
Weight	2.01 lb/ft	Maximum Operating Pressure	17.5 MPa
Compatible Fitting	71 Series	Hose Reinforcement Material	4 Spirals of Steel Wire
Outside Diameter	53 mm

Product resources

Compliance, Certifications & Safety

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
