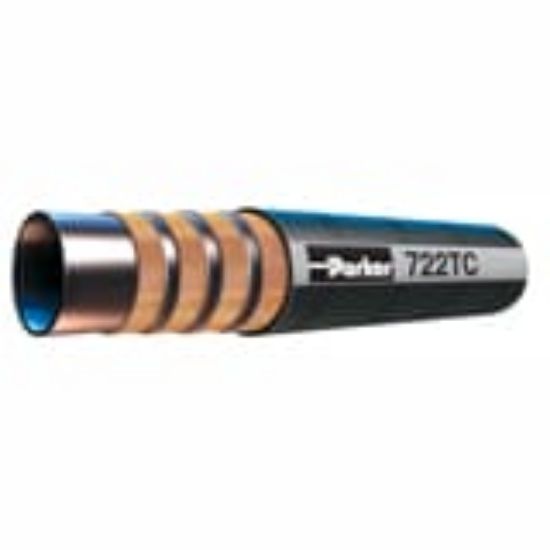

722TC-32 - Hydraulic Industry Standard Hose 2500-3000 PSI – 722TC/ST Hose

Name: 722TC-32 - Hydraulic Industry Standard Hose 2500-3000 PSI – 722TC/ST Hose
SKU: 722TC-32
Price: 88.26 USD
Availability: InStock

Parker’s 722TC/ST hose is a hydraulic industry standard hose that has a pressure range of 2500-3000 PSI, with a synthetic rubber inner tube providing a wider range of fluid compatibility.

Availability:

50 in stock

Olivette, MO

Partner Available:

309 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 722TC-32

$88.26/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-32
Hose Cover Type	ToughCover	Minimum Operating Temperature	-40 °C
Inside Diameter	2 inch	Hose Inner Tube Material	Synthetic Rubber
Nominal Hose Inside Diameter	51 mm	Maximum Operating Temperature	257 °F
Media	Petroleum Hydraulic Fluids	Cover Material	MSHA Approved
Outside Diameter	66 mm	Weight	4.09 kg/m
Minimum Bend Radius	12-1/2 inch	Maximum Operating Pressure	17.5 MPa
Compatible Fitting	71 Series	Hose Reinforcement Material	4 Spirals of Steel Wire
Specifications Met	EN 856, Type R12
