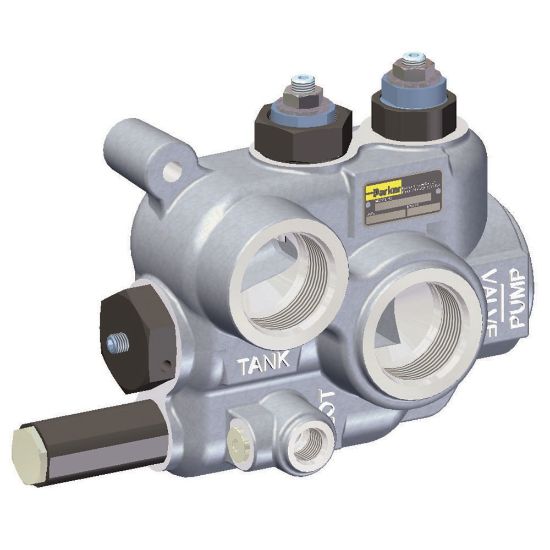

Picture of Hydraulic Pilot Pressure Valve – HP Series - HP-505-MA-NR

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hydraulic Pilot Pressure Valve – HP Series - HP-505-MA-NR

Parker’s HP50 Pilot Generation Valve is designed to provide an in-line solution for generating a 300-500 PSI pilot pressure source that is typically required for hydraulic joysticks or solenoid operated main control valves.
Availability:
Backordered
SKU HP-505-MA-NR
$1,709.40
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAPressure Relief ValveNo Relief
Pressure Range (psi)500Seal Materialn/a
Maximum Flow Raten/aProduct StyleHydraulic Pilot Pressure Valves
For Fluid TypeHydraulic OilDivisionHydraulic Valve Systems Division
Maximum Operating Pressure3500 psiBody MaterialHigh Strength Cast Iron
Minimum Operating Temperature-40 °FMinimum Operating Pressure-40 °F
Mounting TypeIn-LinePressure Control Rangen/a
Maximum Operating Temperature+200 °FWeight14.5 lb
Actuation TypeMechanically AdjustableAdditional OptionsNo Relief
Product resources

Literature and Reference Materials
