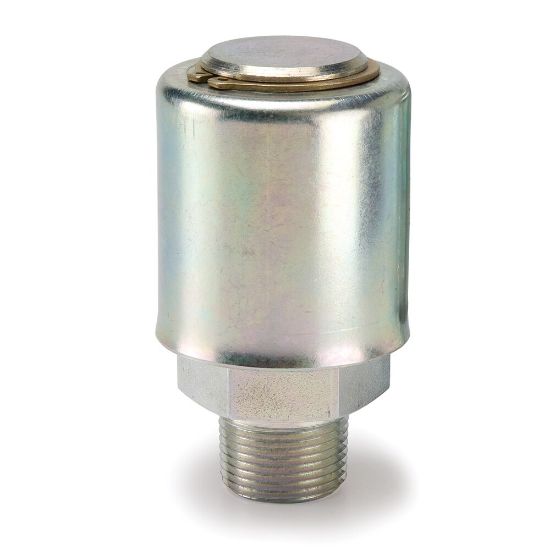

H1-05-12MP - Hydraulic Pressure/Vacuum Relief Valves - H1 / HM1 Series

Parker's pressure/vacuum relief valves are designed for use with pressurized reservoirs to prevent pump cavitation by maintaining positive tank pressure and filtering incoming air.

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	1 Limited Stock

SKU H1-05-12MP

$180.84/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Cracking Pressure (psi)	5
Special Options	na	Connection Thread Size (inch)	3/4 - 14
Thread Type	Male NPTF	Maximum Operating Temperature	250 °F
Minimum Operating Temperature	-40 °F	Seal Material	Elastomeric
Body Material	Steel	Actuation Type	Mechanical
Vacuum Relief Pressure	0.3 psi	For Fluid Type	Hydraulic
Pressure Control Range	5 psi	Maximum Flow Rate	n/a
Maximum Operating Pressure	60 psi
