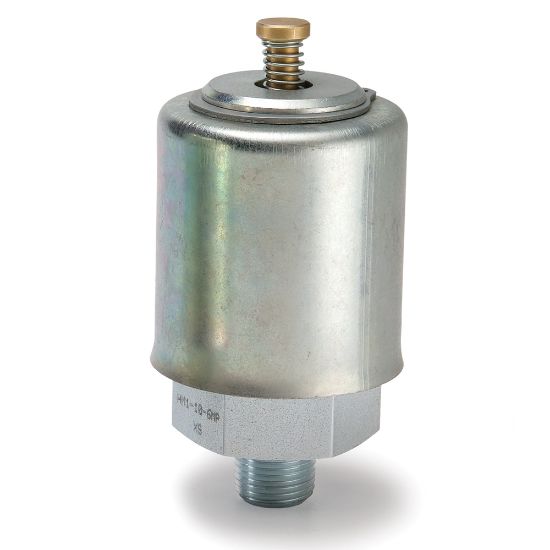

HM1-10-6MP - Hydraulic Pressure/Vacuum Relief Valves - H1 / HM1 Series

Parker's pressure/vacuum relief valves are designed for use with pressurized reservoirs to prevent pump cavitation by maintaining positive tank pressure and filtering incoming air.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU HM1-10-6MP

$297.16/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Special Options	Manual pressure relief button
Cracking Pressure (psi)	10	Thread Type	Male NPTF
Connection Thread Size (inch)	3/8 - 18	Maximum Operating Pressure	60 psi
Maximum Operating Temperature	250 °F	Body Material	Steel
Minimum Operating Temperature	-40 °F	Seal Material	Elastomeric
Actuation Type	Mechanical	Pressure Control Range	10 psi
Vacuum Relief Pressure	0.3 psi	For Fluid Type	Hydraulic
Maximum Flow Rate	n/a
