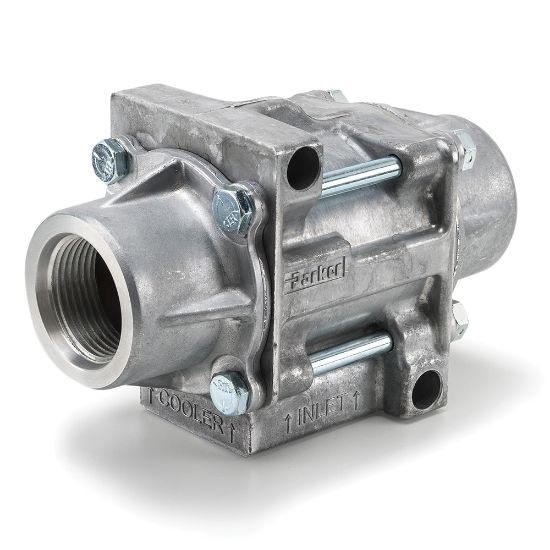

TH-1000-16FO-30 - Hydraulic Thermal Bypass Valves - TH Series

Parker's thermal bypass valves modulate fluid temperature by shifting return line flow through the cooler, or bypassing it directly to the reservoir.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU TH-1000-16FO-30

$159.66/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	1 5/16 - 12 UN
Shift Temperature (F)	120	Thread Type	Female SAE ORB
Cracking Pressure (psi)	50	Flow Rate	60 Gal/min
Maximum Operating Pressure	250 psi	Function	Diverter
Actuation Type	Mechanical	Minimum Operating Temperature	-30 °F
For Fluid Type	Hydraulic Oil	Body Material	Aluminum
Maximum Operating Temperature	195 °F	Maximum Flow Rate	60 Gal/min
Valve Port Size	1 inch	Seal Material	Elastomeric
