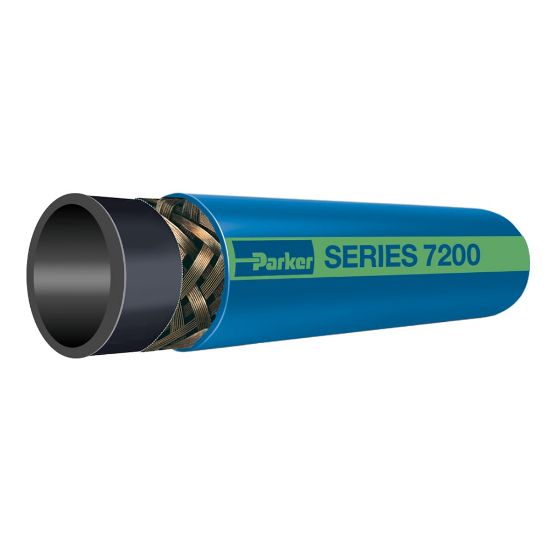

7200-751050 - Hydrocarbon High Temperature Oil Resistant Drain Hose, Series 7200

Hydrocarbon High Temperature Oil Resistant Drain Hose is designed to drain/evacuate hot liquefied residue from storage tanks/vessels generated by cleaning applications to 350°F and 350 psi, Series 7200

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	600 in stock

SKU 7200-751050

$15.04/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	3/4
Specifications Met	N/A	Media	Water
Cover Color	Blue	Maximum Operating Pressure	1.7 MPa
Inside Diameter	19.1 mm	Weight	0.77 kg/m
Cover Material	Chloroprene Rubber (CR)	Hose Inner Tube Material	Nitrile
Minimum Operating Temperature	-20 °F	Outside Diameter	30.1 mm
Hose Reinforcement Material	1 Braid of Wire	Minimum Bend Radius	241.3 mm
Maximum Operating Temperature	149 °C

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
