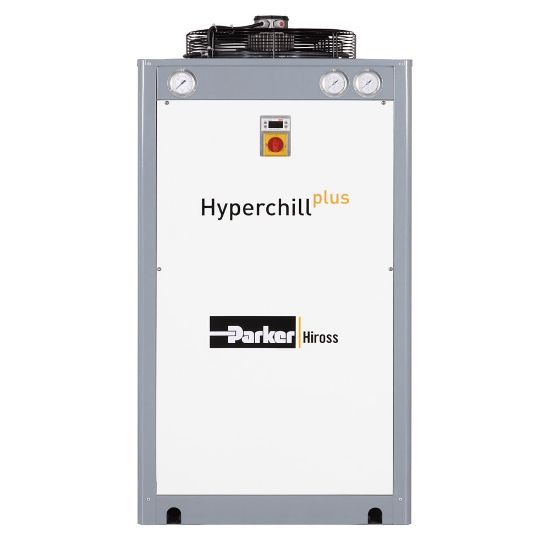

Picture of Hyperchill Plus - Industrial Water Chiller for Precision Cooling of Low Viscosity Industrial Cooling Fluids - ICEP003-WASP5T0000001

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Hyperchill Plus - Industrial Water Chiller for Precision Cooling of Low Viscosity Industrial Cooling Fluids - ICEP003-WASP5T0000001

This product is no longer available, please refer to Hyperchill Plus-E 50Hz Range instead.
Availability:
Backordered
SKU ICEP003-WASP5T0000001
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEACooling MethodAir Cooled / Axial Fans
Water Sensor OptionNo Low WaterAdditional Protection IncludedWithout Antifreeze
Pump TypeSingle Pump 5 barHydraulic CircuitWith Tank
Operating EnvironmentNo Low AmbientOutput Water Temperature RangeWithout Close Control
OptionsNo Options SelectedKit TypeAmbient Manual Fill Kit
Power Supply Voltage230V/1Ph/50HzMaximum Cooling Capacity3.3 kW @ 25°C (63°F)
DivisionGas Separation and Filtration Division EMEADivisionGas Separation and Filtration Division EMEA
Port Size3/4 inchFor Fluid TypeWater
BrandHirossIndustryElectronics
Refrigerant TypeR407cOperating Temperature41 to 86 °F
Product TypeProduction Process Water ChillerSpecifications MetMachinery Directive 2006/42/EC
Product StylePressurized Closed Hydraulic CircuitTechnologyThermal and Power Management
Port TypeThreadedApplicationPrecision Cooling of Low Viscosity Industrial Cooling Fluids
Depth535 mmWidth29.7 inch
Height801 mmTank Capacity15 L
Product SeriesHyperchill PlusAmbient Temperature118.4
Compressor IncludedHermetic PistonNumber of Axial Fans1
Weight80 kgIngress Protection RatingIP33
