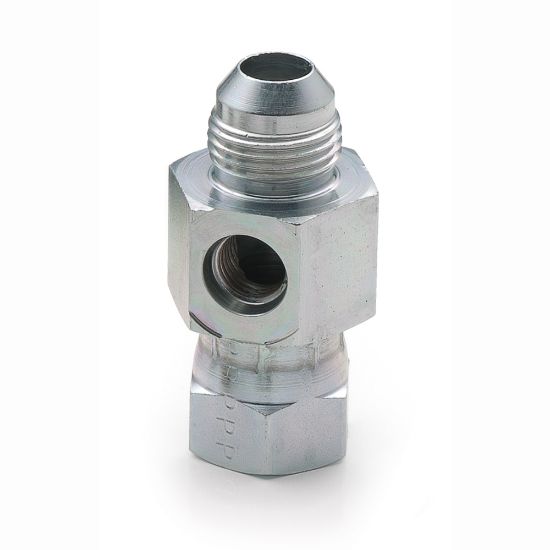

4-4G4MXSMO - In-Line Diagnostic Fittings and Adapters

Parker's Diagnostic products are designed to be installed to a hose assembly or tube line without the need to displace the port adapter, working in conjunction with electronic diagnostic products and mechanical pressure and temperature sensing equipment.

Availability:	Backordered Estimated Lead Time: 101 days
Partner Available:	24 in stock

SKU 4-4G4MXSMO

$20.05/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Connection 3 Style	na	Connection 2 Thread Size (mm)	na
Connection 3 Thread Size (inch)	na	Connection 2 Thread Size (inch)	1/4-19
Connection 2 Tube O.D. (inch)	na	Connection 1 Tube O.D. (mm)	na
Connection 1 Style	Male 37° Flare	O-Ring Material	NBR
Connection 2 Tube O.D. (mm)	na	Connection 3 Thread Size (mm)	na
Connection 1 Tube O.D. (inch)	1/4	Connection 2 Style	Female BSPP with Sealing Washer
Body Material	Steel	Maximum Dynamic Pressure	5000 psi
Maximum Static Pressure	5000 psi	Connection Type	BSPP Pressure Gauge Adapter
