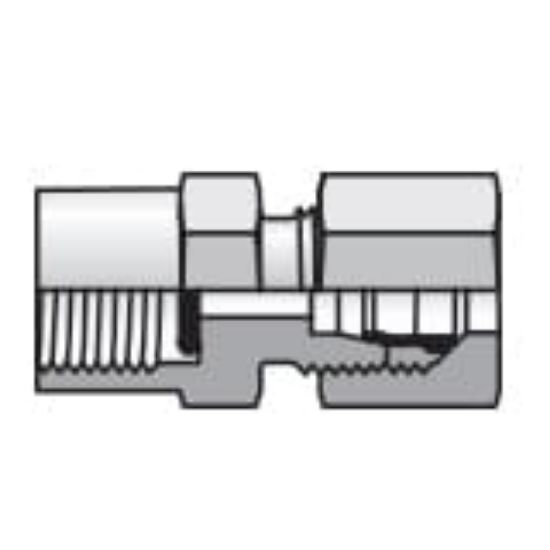

Picture of In-Line Diagnostic Fittings and Adapters - MAV06ZLRCF

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

In-Line Diagnostic Fittings and Adapters - MAV06ZLRCF

Parker's Diagnostic products are designed to be installed to a hose assembly or tube line without the need to displace the port adapter, working in conjunction with electronic diagnostic products and mechanical pressure and temperature sensing equipment.
Availability:
Backordered
SKU MAV06ZLRCF
$13.89
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 1 StyleMale 24° Soft Seal Metric Flareless
O-Ring MaterialNBRConnection 2 Thread Size (mm)na
Connection 3 StylenaConnection 1 Tube O.D. (inch)na
Connection 3 Thread Size (inch)naConnection 2 StyleFemale BSPP with Sealing Washer
Connection 1 Tube O.D. (mm)6LBody MaterialSteel
Connection 2 Tube O.D. (mm)naConnection 3 Thread Size (mm)na
Connection 2 Thread Size (inch)1/4-19Connection 2 Tube O.D. (inch)na
Maximum Static Pressure4500 psiMaximum Dynamic Pressure4500 psi
Connection TypeBSPP Pressure Gauge AdapterDivisionTube Fittings Division
Body MaterialSteel
