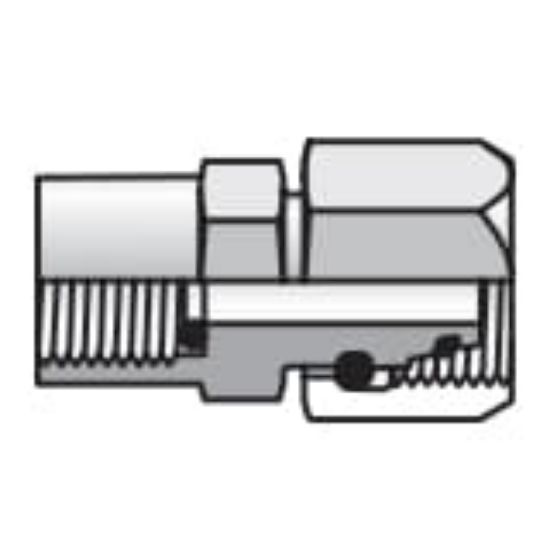

MAVE06SRCF - In-Line Diagnostic Fittings and Adapters

Parker's Diagnostic products are designed to be installed to a hose assembly or tube line without the need to displace the port adapter, working in conjunction with electronic diagnostic products and mechanical pressure and temperature sensing equipment.

Availability:	Backordered Estimated Lead Time: 112 days
Partner Available:	Backordered

SKU MAVE06SRCF

$51.00/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/2-14
Connection 2 Tube O.D. (mm)	na	Connection 1 Style	Male 24° Metric Flareless Swivel
Connection 2 Style	Female BSPP with Sealing Washer	Connection 1 Tube O.D. (inch)	na
Connection 3 Thread Size (inch)	na	Connection 2 Thread Size (mm)	na
Connection 3 Style	na	Connection 2 Tube O.D. (inch)	na
Body Material	Steel	O-Ring Material	NBR
Connection 1 Tube O.D. (mm)	6S	Connection 3 Thread Size (mm)	na
Maximum Static Pressure	9100 psi	Body Material	Steel
Maximum Dynamic Pressure	9100 psi	Connection Type	BSPP Pressure Gauge Adapter

Product resources

Compliance, Certifications & Safety

Lloyds Register Zertifikat LR2382868TA-Triple-Lok (PDF)
