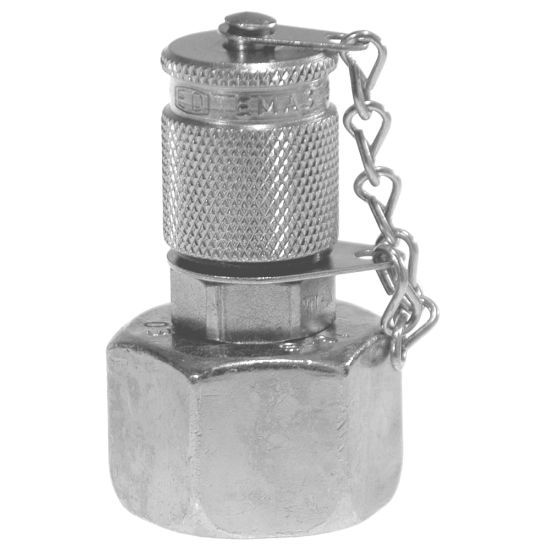

Picture of In-Line Diagnostic Fittings and Adapters - VKA3/20S71

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

In-Line Diagnostic Fittings and Adapters - VKA3/20S71

Parker's Diagnostic products are designed to be installed to a hose assembly or tube line without the need to displace the port adapter, working in conjunction with electronic diagnostic products and mechanical pressure and temperature sensing equipment.
Availability:
Backordered
SKU VKA3/20S71
$335.65
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 1 Tube O.D. (mm)20S
Connection 2 Tube O.D. (mm)naConnection 1 StyleMale 24° Metric Flareless Swivel
Connection 1 Tube O.D. (inch)naConnection 3 Thread Size (mm)na
Connection 2 Thread Size (mm)M16X2Connection 2 Tube O.D. (inch)na
Connection 2 StyleM16 Test Point ConnectorConnection 3 Stylena
Connection 2 Thread Size (inch)naO-Ring MaterialFKM (Vit)
Connection 3 Thread Size (inch)naBody MaterialStainless Steel
Maximum Static Pressure9100 psiMaximum Dynamic Pressure5800 psi
DivisionTube Fittings DivisionBody MaterialStainless Steel
Connection TypeEO Diagnostic Swivels
