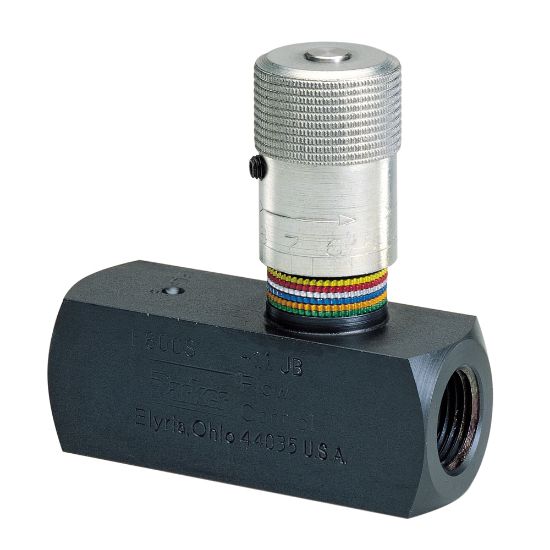

In-line Flow Control Valve – F Series - 8F1200S

Name: In-line Flow Control Valve – F Series - 8F1200S
SKU: 8F1200S

The Colorflow F series of hydraulic flow control valves permits free flow in one direction and metered flow in the reverse direction. This flow control valve is used in air and oil applications.

Availability:

Backordered

SKU 8F1200S

$240.24

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Flow Rate	25
Seal Material	Nitrile	Needle	Standard
Connection Size	3/4"	Maximum Operating Temperature	+250
Function	Flow Control	Knob Option	Standard
Maximum Operating Pressure (psi)	3000	Cracking Pressure (psi)	5
Minimum Operating Temperature	-40	Actuation Type	Manual
Connection Type	BSPT	Configuration	InLine
Body Material	Steel	Poppet Style	Metal
Maximum Flow Rate	25 Gal/min	Minimum Operating Temperature	-40 °F
Body Material	Steel	Media	Oil
Maximum Operating Pressure	5000 psi	Seal Material	Nitrile
Flow Rate	n/a	Actuation Type	Manual
Connection Type	Female to Female	Connection Size	1/8 inch
Division	Hydraulic Valve Systems Division	Configuration	Inline
Brand	Colorflow	Maximum Operating Temperature	121 °C
Function	Flow Control
