9F600S - In-line Flow Control Valve – F Series

The Colorflow F series of hydraulic flow control valves permits free flow in one direction and metered flow in the reverse direction. This flow control valve is used in air and oil applications.

Availability:	Backordered Estimated Lead Time: 28 days
Partner Available:	40 in stock

SKU 9F600S

$149.60/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	Steel
Seal Material	Nitrile	Cracking Pressure (psi)	5
Connection Size	3/8"	Connection Type	BSPP
Function	Flow Control	Configuration	InLine
Actuation Type	Manual	Maximum Operating Temperature	+250
Minimum Operating Temperature	-40	Needle	Standard
Knob Option	Standard	Poppet Style	Metal
Maximum Operating Pressure (psi)	5000	Maximum Flow Rate	8
Minimum Operating Temperature	-40 °F	Body Material	Steel
Flow Rate	n/a	Seal Material	Nitrile
Maximum Operating Temperature	250 °F	Maximum Operating Pressure	5000 psi
Actuation Type	Manual	Connection Type	Female to Female
Media	Oil	Function	Flow Control
Configuration	Inline	Connection Size	3/8 inch
Maximum Flow Rate	30 L/min

Customers who bought this item also bought

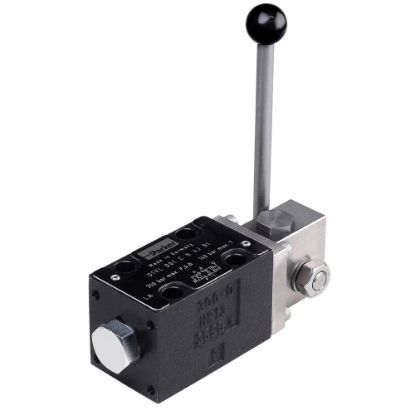

D1VL001CN
