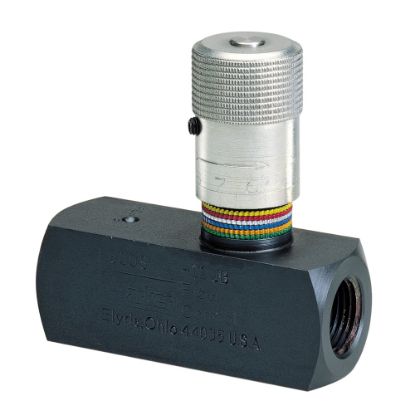

Picture of In-line Flow Control Valve – F Series - 9F800S

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

In-line Flow Control Valve – F Series - 9F800S

The Colorflow F series of hydraulic flow control valves permits free flow in one direction and metered flow in the reverse direction. This flow control valve is used in air and oil applications.
Availability:
6 in stock
Wichita, KS6
SKU 9F800S
$177.60
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody MaterialSteel
Seal MaterialNitrileCracking Pressure (psi)5
Connection TypeBSPPFunctionFlow Control
ConfigurationInLineActuation TypeManual
Maximum Operating Temperature+250Minimum Operating Temperature-40
NeedleStandardKnob OptionStandard
Poppet StyleMetalMaximum Operating Pressure (psi)5000
Connection Size1/2Maximum Flow Rate15
Minimum Operating Temperature-40 °FBody MaterialSteel
Flow Raten/aSeal MaterialNitrile
Maximum Operating Temperature250 °FMaximum Operating Pressure5000 psi
DivisionHydraulic Valve Systems DivisionMaximum Flow Rate57 L/min
Connection Size1/2 inchActuation TypeManual
Connection TypeFemale to FemaleBrandColorflow
MediaOilFunctionFlow Control
ConfigurationInline
