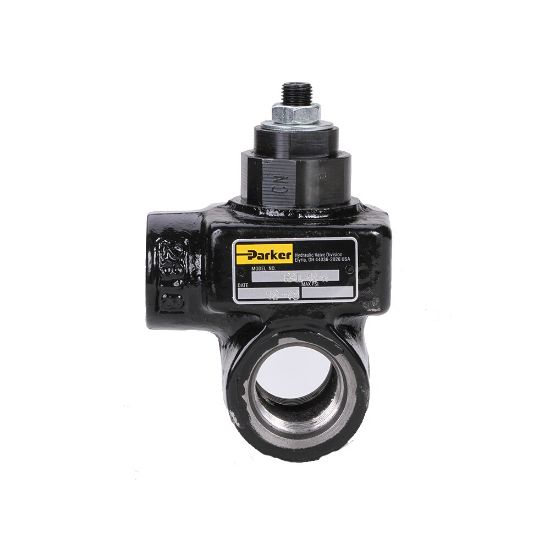

Picture of In-Line Mounted Pilot Operated Relief Valve - RPJL Series - RPJL-50-A

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

In-Line Mounted Pilot Operated Relief Valve - RPJL Series - RPJL-50-A

Parker’s RPJL In-line Relief valve rated at 25 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.
Availability:
Backordered
SKU RPJL-50-A
$529.20
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAPort Size1/2" NPT
Maximum Operating Pressure2000 psiMaximum Flow Rate25 Gal/min
Weight3 lbMinimum Operating Temperature-40 °F
Maximum Operating Temperature+200 °FBody MaterialHigh Strength Cast Iron
Adjustment MechanismAdjustableConnection Size1/2"
Seal MaterialNitrileMounting TypeIn-Line
Product StyleIn-Line Pilot Mounted Operated Relief ValveDivisionHydraulic Valve Systems Division
Actuation TypeAdjustablePressure Control RangeAdjustable
Connection TypeNPTFor Fluid TypeHydraulic Oil
