Inch Brass Compression Fittings

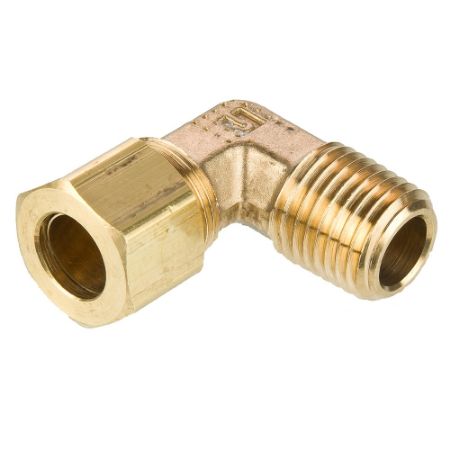

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's compression fittings are economical and offered in both extrusions and forgings. These compression fittings require no flaring, soldering, tube preparation or special tools to operate. Compression fittings are especially useful in installations that may require occasional disassembly or partial removal for maintenance since the fitting can be broken and remade without affecting the integrity of the joint. Compression fittings are also used in situations where a heat source, in particular a soldering torch, is prohibited.
Use with copper, aluminum and the following Parker Parflex Division tubing:
• Polyethylene
• Nylon
• Polypropylene
Markets:
• Industrial
• Packaging
• Pneumatic
• Printing
• Compressors
• Marine
Features/Benefits:
• All brass construction
• Economical
• Long Nut for vibration
• UL listed for flammable liquid
• Meets SAE J-512
• Acetal sleeve for use with thermoplastic tubing
Applications:
• Air lines
• Lubrication lines
• Cooling lines
• Fluid transfer
• Water lines
• Automotive process
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Shape | Connection 2 Size | Configuration | Body Material | Connection 1 Size | Connection 1 Type | Connection 2 Type | Connection 3 Size | Connection 3 Type | Body Material | Maximum Operating Pressure | Maximum Operating Temperature | Minimum Operating Temperature | Dimensional Weight | Nut Material | Specifications Met | Media | Weight | Quantity per Box | Tube Material | Sleeve Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 164C-10 | 4 in stock | Backordered | $51.76/each | EA | Tee | 5/8" | Tube to Tube | Brass, Forged | 5/8" | Compression | Compression | 5/8" | Compression | Brass | 150 psi | 121 °C | -65 °F | 0.5519 lb | Brass | SAE J-512 | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | |
| 164C-12 | 9 in stock | 14 in stock | $52.04/each | EA | Tee | 3/4" | Tube to Tube | Brass, Forged | 3/4" | Compression | Compression | 3/4" | Compression | Brass | 7 bar | 250 °F | -54 °C | 0.4599 lb | Brass | na | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | |
| 164C-2 | Backordered | 18 in stock | $13.58/each | EA | Tee | 1/8" | Tube to Tube | Brass, Forged | 1/8" | Compression | Compression | 1/8" | Compression | Brass | 2800 psi | 250 °F | -65 °F | Brass | SAE J-512 | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||
| 164C-4 | 86 in stock | 431 in stock | $10.60/each | EA | Tee | 1/4" | Tube to Tube | Brass, Forged | 1/4" | Compression | Compression | 1/4" | Compression | Brass | 20 bar | 250 °F | -54 °C | 0.1104 lb | Brass | na | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | |
| 164C-5 | 23 in stock | 20 in stock | $15.36/each | EA | Tee | 5/16" | Tube to Tube | Brass, Forged | 5/16" | Compression | Compression | 5/16" | Compression | Brass | 300 psi | 250 °F | -54 °C | Brass | SAE J-512 | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||
| 164C-6 | 5 in stock | 93 in stock | $13.83/each | EA | Tee | 3/8" | Tube to Tube | Brass, Forged | 3/8" | Compression | Compression | 3/8" | Compression | Brass | 68.9 bar | 121 °C | -54 °C | 0.1104 lb | Brass | SAE J-512 | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | |
| 164C-6-4-4 | Backordered | 8 in stock | $21.53/each | EA | Tee | 1/4" | Tube to Tube | Brass, Forged | 3/8" | Compression | Compression | 1/4" | Compression | Brass | 96.5 bar | 121 °C | -54 °C | Brass | na | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||
| 164C-6-6-4 | 6 in stock | 1 Limited Stock | $22.50/each | EA | Tee | 3/8" | Tube to Tube | Brass, Forged | 3/8" | Compression | Compression | 1/4" | Compression | Brass | 200 psi | 121 °C | -65 °F | Brass | na | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||
| 164C-8 | 21 in stock | 42 in stock | $30.84/each | EA | Tee | 1/2" | Tube to Tube | Brass, Forged | 1/2" | Compression | Compression | 1/2" | Compression | Brass | 200 psi | 121 °C | -54 °C | Brass | SAE J-512 | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||
| 164C-8-8-6 | 1 Limited Stock | Backordered | $43.69/each | EA | Tee | 1/2" | Tube to Tube | Brass, Forged | 1/2" | Compression | Compression | 3/8" | Compression | Brass | 51.7 bar | 250 °F | -54 °C | Brass | na | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||
| 165C-10 | Backordered | Backordered | $45.20/each | EA | Elbow 90° | 5/8" | Tube to Tube | Brass, Forged | 5/8" | Compression | Compression | Brass | 150 psi | 250 °F | -65 °F | Brass | SAE J-512 | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||||
| 165C-12 | Backordered | 3 in stock | $75.91/each | EA | Elbow 90° | 3/4" | Tube to Tube | Brass, Forged | 3/4" | Compression | Compression | Brass | 550 psi | 121 °C | -54 °C | 0.5519 lb | Brass | na | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | |||
| 165C-2 | Backordered | 4 in stock | $15.07/each | EA | Elbow 90° | 1/8" | Tube to Tube | Brass, Forged | 1/8" | Compression | Compression | Brass | 193 bar | 121 °C | -54 °C | Brass | na | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||||
| 165C-3 | 5 in stock | 18 in stock | $10.43/each | EA | Elbow 90° | 3/16" | Tube to Tube | Brass, Forged | 3/16" | Compression | Compression | Brass | 400 psi | 121 °C | -65 °F | Brass | SAE J-512 | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||||
| 165C-4 | 32 in stock | 18 in stock | $7.22/each | EA | Elbow 90° | 1/4" | Tube to Tube | Brass, Forged | 1/4" | Compression | Compression | Brass | 1400 psi | 250 °F | -54 °C | 0.2759 lb | Brass | SAE J-512 | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | |||
| 165C-5 | 2 Limited Stock | 24 in stock | $12.25/each | EA | Elbow 90° | 5/16" | Tube to Tube | Brass, Forged | 5/16" | Compression | Compression | Brass | 300 psi | 121 °C | -65 °F | Brass | SAE J-512 | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||||
| 165C-6 | 12 in stock | 43 in stock | $10.60/each | EA | Elbow 90° | 3/8" | Tube to Tube | Brass, Forged | 3/8" | Compression | Compression | Brass | 14 bar | 250 °F | -54 °C | 0.2759 lb | Brass | SAE J-512 | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | |||
| 165C-7 | Backordered | Backordered | POR | EA | Elbow 90° | 7/16" | Tube to Tube | Brass, Forged | 7/16" | Compression | Compression | Brass | 62.05 bar | 121 °C | -54 °C | Brass | SAE J-512 | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||||
| 165C-8 | Backordered | 47 in stock | $26.06/each | EA | Elbow 90° | 1/2" | Tube to Tube | Brass, Forged | 1/2" | Compression | Compression | Brass | 750 psi | 121 °C | -54 °C | 0.2759 lb | Brass | na | Water, air, inert and non-combustible gasses | na | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | |||
| 168C-4-2 | Backordered | Backordered | $26.57/each | EA | Tee - Gage | 1/8" | Tube to Pipe | Brass, Forged | 1/4" | Compression | Compression | 1/8" | Compression | Brass | 96.5 bar |
