Inch Tube and Hose Clamps
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
ParKlamp Inch Tube and Hose Clamps are designed for restraining tube, pipe and hose against unwanted and potentially harmful effects of shock and vibration. Offered in polypropylene and steel, ParKlamp meets the basic envelope dimensions of DIN 3015, Part 1, and the ParKlamp clamp halves are interchangeable with the Parker metric clamp system.
Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Machine Tool
• Transportation
• Alternative Energy
• Off-Shore/Oil & Gas
Features/Benefits:
• Weld plate mounting allows user to attach a single clamp assembly to a structure of similar material by welding components together.
• Using ParKlamp can significantly reduce the risk of problems resulting from mechanical shock and vibration.
• Mounting rails allows multiple clamps to be mounted for restraining a group of tube, pipe or hose assemblies together either side-by-side or stacking configurations.
• Three Series of ParKlamp offered: Standard Load, Heavy Load and Twin.
• Offered in Sizes 1/4" through 3"
Applications:
• Hydraulic fluid and gas handling tube, pipe and hose line clamping systems
Read More...Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Machine Tool
• Transportation
• Alternative Energy
• Off-Shore/Oil & Gas
Features/Benefits:
• Weld plate mounting allows user to attach a single clamp assembly to a structure of similar material by welding components together.
• Using ParKlamp can significantly reduce the risk of problems resulting from mechanical shock and vibration.
• Mounting rails allows multiple clamps to be mounted for restraining a group of tube, pipe or hose assemblies together either side-by-side or stacking configurations.
• Three Series of ParKlamp offered: Standard Load, Heavy Load and Twin.
• Offered in Sizes 1/4" through 3"
Applications:
• Hydraulic fluid and gas handling tube, pipe and hose line clamping systems
| Action | SKU | Availability | Partner Available | Price | UOM | Dimensional Weight | Tube Outside Diameter | Hose Inside Diameter | Materials of Construction | Length | Part Type | Body Material | Pipe Outside Diameter | Connection Thread Size | Operating Load Duty Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

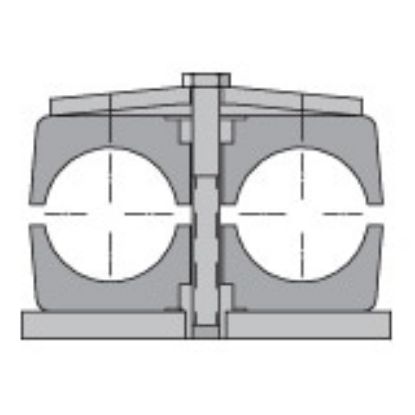

| 1064/64-PP | Backordered | 30 in stock | $2.44/each | EA | 0.039568345323741004 lb | 1/4 inch | na | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Light Duty/Twin Series | |

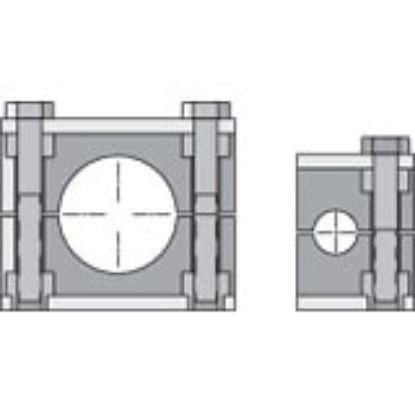

| 1064A-PP | 20 in stock | 74 in stock | $1.50/each | EA | 0.062320143884892085 lb | 1/4 inch | na | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Standard Load | |
| 1095/95-PP | Backordered | 156 in stock | $2.69/each | EA | 0.05885791366906475 lb | 3/8 inch | na | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Light Duty/Twin Series | |
| 1095A-PP | 2 Limited Stock | 327 in stock | $1.50/each | EA | 0.062320143884892085 lb | 3/8 inch | na | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Standard Load | |
| 1095-PP | 13 in stock | 69 in stock | $1.50/each | EA | 0.039568345323741004 lb | 3/8 inch | na | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Standard Load | |
| 2127/127-PP | 51 in stock | 299 in stock | $3.54/each | EA | 0.062320143884892085 lb | 1/2 inch | na | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Light Duty/Twin Series | |
| 2127-PP | 4 in stock | 485 in stock | $1.88/each | EA | 0.062320143884892085 lb | 1/2 inch | na | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Standard Load | |
| 2160/160-PP | 24 in stock | 629 in stock | $3.16/each | EA | 0.062320143884892085 lb | 5/8 inch | na | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Light Duty/Twin Series | |
| 2160-PP | Backordered | 30 in stock | $1.69/each | EA | 0.062320143884892085 lb | 5/8 inch | na | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Standard Load | |
| 3095-HPP | 7 in stock | 6 in stock | $3.77/each | EA | 0.062320143884892085 lb | 3/8 inch | na | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Heavy Load | |
| 3127-HPP | Backordered | 86 in stock | $3.77/each | EA | 1/2 inch | na | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Heavy Load | ||
| 3160-HPP | Backordered | 443 in stock | $4.05/each | EA | 0.11236510791366906 lb | 5/8 inch | na | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Heavy Load | |
| 3190/190-PP | 29 in stock | 165 in stock | $4.22/each | EA | 0.11236510791366906 lb | 3/4 inch | na | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Light Duty/Twin Series | |
| 3190-PP | Backordered | 126 in stock | $2.26/each | EA | 0.062320143884892085 lb | 3/4 inch | na | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Standard Load | |
| 3213-PP | Backordered | 5 in stock | $2.26/each | EA | 0.062320143884892085 lb | na | na | Polypropylene | na | Clamp Halves | Polypropylene | 1/2 inch | na | Standard Load | |
| 3254/254-PP | 6 in stock | 118 in stock | $4.40/each | EA | 0.0725179856115108 lb | 1 inch | na | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Light Duty/Twin Series | |
| 3254-PP | 2 Limited Stock | 420 in stock | $2.26/each | EA | 0.062320143884892085 lb | 1 inch | na | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Standard Load | |
| 4190-HPP | 3 in stock | 56 in stock | $4.63/each | EA | 0.11236510791366906 lb | 3/4 inch | na | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Heavy Load | |
| 4213-HPP | Backordered | 76 in stock | $4.63/each | EA | 0.11236510791366906 lb | na | na | Polypropylene | na | Clamp Halves | Polypropylene | 1/2 inch | na | Heavy Load | |
| 4254-HPP | 26 in stock | 419 in stock | $4.63/each | EA | 0.11236510791366906 lb | 1 inch | na | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Heavy Load |
