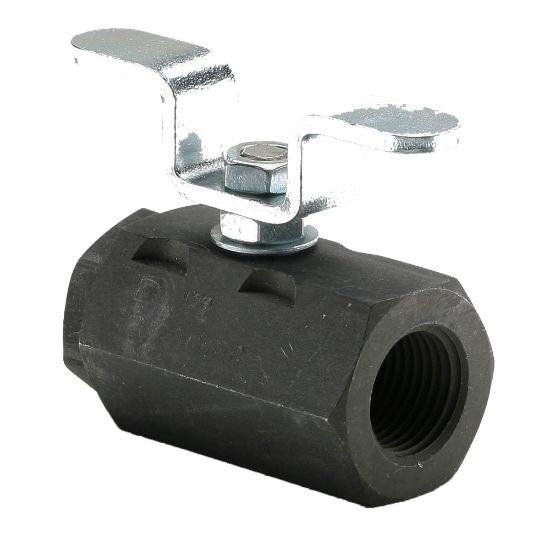

V500CS-4-04 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Availability:	Backordered Estimated Lead Time: 30 days
Partner Available:	Backordered

SKU V500CS-4-04

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Style	Female Pipe
Connection 1 Thread Size (inch)	1/4	Style	Female Pipe Ends
Shape	In Line	Handle	Steel Tee
Maximum Working Pressure (psi)	2000	Connection 2 Thread Size (inch)	1/4
Connection 1 Thread Style	Female Pipe	Locking Mechanism	Non-Locking
Connection Size	1/4	Function	Ball Valve
Specifications Met	N/A	Connection Type	NPT, Straight Thread, SAE J1926-1
Ball Material	Steel	Mounting Type	Panel
Maximum Operating Pressure	138	Handle Type	Tee
Orifice Size	n/a	Operation Type	n/a
Seal Material	PTFE	Maximum Flow Rate	n/a
Actuation Type	Manual	Minimum Operating Temperature	-20
Configuration	In-line	Shape	In-Line
Body Material	Carbon Steel	Seat Material	PTFE
Maximum Operating Temperature	425
