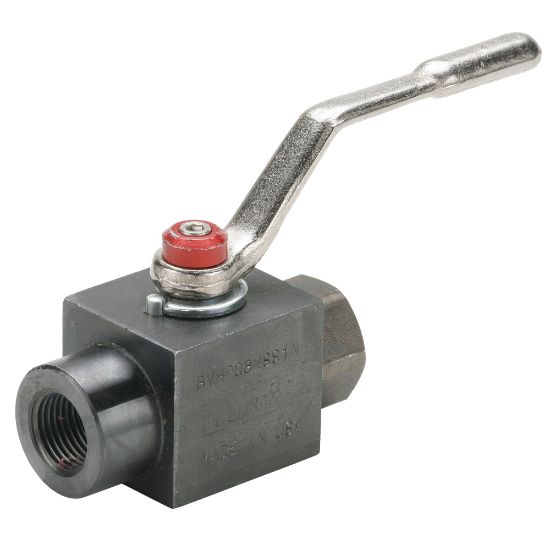

V500HP-6 - Industrial Ball Valves - Carbon Steel

Name: V500HP-6 - Industrial Ball Valves - Carbon Steel
SKU: V500HP-6
Price: 110.64 USD
Availability: InStock

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Availability:

6 in stock

Kansas City, KS

Partner Available:

69 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU V500HP-6

$110.64/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Style	Female Pipe
Connection 2 Thread Size (inch)	3/8	Maximum Working Pressure (psi)	6000
Shape	In Line	Style	Female Pipe Ends
Handle	Steel Lever	Connection 1 Thread Size (inch)	3/8
Connection 1 Thread Style	Female Pipe	Locking Mechanism	Non-Locking
Connection Size	3/8	Function	Ball Valve
Specifications Met	N/A	Ball Material	Steel
Mounting Type	Panel	Connection Type	NPT, Straight Thread, SAE J1926-1
Orifice Size	n/a	Seat Material	Delrin Molybdenum Disulphide
Minimum Operating Temperature	-10	Operation Type	n/a
Actuation Type	Manual	Maximum Flow Rate	n/a
Shape	In-Line	Maximum Operating Temperature	210
Maximum Operating Pressure	413	Configuration	In-line
Seal Material	PTFE	Body Material	Carbon Steel
Handle Type	Lever
