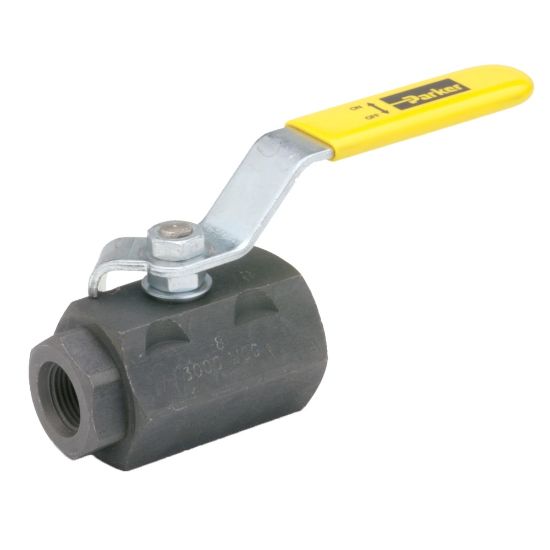

Picture of V506CS-12 - Industrial Ball Valves - Carbon Steel

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

V506CS-12 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.
Availability:
Backordered
Estimated Lead Time: 238 days
Partner Available:10 in stock
SKU V506CS-12
$177.55/each
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAMaximum Working Pressure (psi)3000
Locking MechanismNon-LockingShapeIn Line
HandleSteel LeverStyleStraight Thread Ends
Connection 1 Thread StyleSAE Straight ThreadConnection 2 Thread StyleSAE Straight Thread
Connection 1 Thread Size (inch)1 1/16-12Connection 2 Thread Size (inch)1 1/16-12
Specifications MetN/ASeal MaterialPTFE
Minimum Operating Temperature-20Connection Size3/4
Maximum Flow Raten/aShapeIn-Line
Actuation TypeManualSeat MaterialPTFE
FunctionBall ValveHandle TypeLever
Orifice Sizen/aOperation Typen/a
Ball MaterialSteelConfigurationIn-line
Mounting TypePanelBody MaterialCarbon Steel
Maximum Operating Temperature425Connection TypeNPT, Straight Thread, SAE J1926-1
Maximum Operating Pressure206
