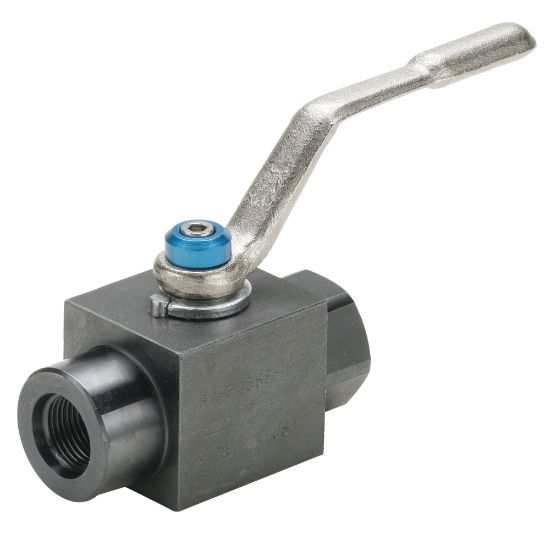

V506HP-32 - Industrial Ball Valves - Carbon Steel

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	Backordered

SKU V506HP-32

$709.11/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Working Pressure (psi)	6000
Locking Mechanism	Non-Locking	Shape	In Line
Handle	Steel Lever	Style	Straight Thread Ends
Connection 1 Thread Style	SAE J1926-1	Connection 2 Thread Style	SAE J1926-1
Connection 1 Thread Size (inch)	2 1/2-12 UNF	Connection 2 Thread Size (inch)	2 1/2-12 UNF
Specifications Met	N/A	Seal Material	PTFE
Maximum Flow Rate	n/a	Shape	In-Line
Actuation Type	Manual	Connection Size	2
Function	Ball Valve	Handle Type	Lever
Minimum Operating Temperature	-10	Orifice Size	n/a
Operation Type	n/a	Ball Material	Steel
Configuration	In-line	Mounting Type	Panel
Body Material	Carbon Steel	Maximum Operating Pressure	413
Maximum Operating Temperature	210	Seat Material	Delrin Molybdenum Disulphide
Connection Type	NPT, Straight Thread, SAE J1926-1
