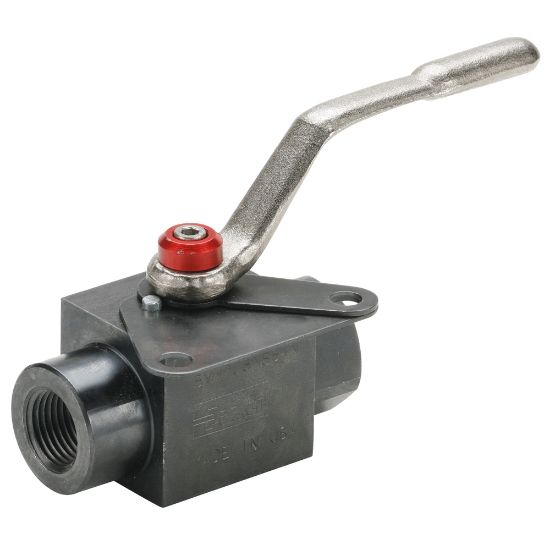

Picture of Industrial Ball Valves - Carbon Steel - VP500HP-32

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Industrial Ball Valves - Carbon Steel - VP500HP-32

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.
Availability:
Backordered
SKU VP500HP-32
$829.14
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEALocking MechanismPadlock
Connection 2 Thread StyleFemale PipeHandleSteel Lever
ShapeIn LineStyleFemale Pipe Ends
Connection 2 Thread Size (inch)2Connection 1 Thread StyleFemale Pipe
Connection 1 Thread Size (inch)2Maximum Working Pressure (psi)6000
Minimum Operating Temperature-10Seat MaterialDelrin Molybdenum Disulphide
FunctionBall ValveOperation Typen/a
Connection Size2Specifications MetN/A
ShapeIn-LineMaximum Operating Pressure413
Seal MaterialPTFEConfigurationIn-line
Maximum Operating Temperature210Orifice Sizen/a
Handle TypeLeverDivisionFluid System Connectors Division
Maximum Flow Raten/aActuation TypeManual
Ball MaterialSteelMounting TypePanel
Connection TypeNPT, Straight Thread, SAE J1926-1Product TypeBall Valve
Body MaterialCarbon Steel
