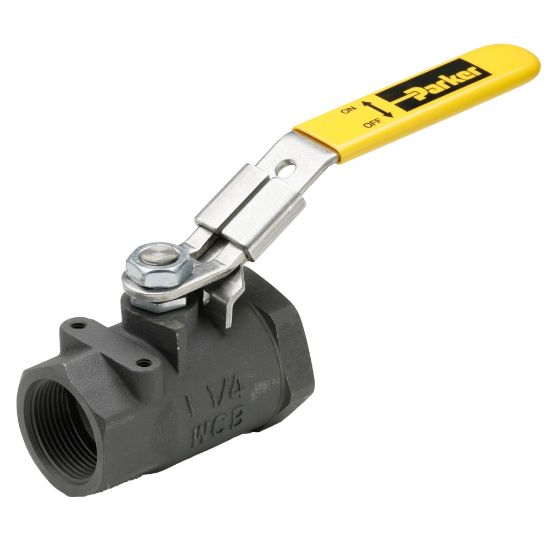

Picture of Industrial Ball Valves - Carbon Steel - VP502CS-32

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Industrial Ball Valves - Carbon Steel - VP502CS-32

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.
Availability:
Backordered
SKU VP502CS-32
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEALocking MechanismPadlock
Connection 2 Thread StyleFemale PipeShapePanel mount
StyleFemale Pipe EndsConnection 1 Thread Size (inch)2
HandleSteel LeverMaximum Working Pressure (psi)1500
Connection 2 Thread Size (inch)2Connection 1 Thread StyleFemale Pipe
Operation Typen/aConnection Size2
Specifications MetN/AConnection TypeNPT, Straight Thread, SAE J1926-1
FunctionBall ValveBall MaterialSteel
Mounting TypePanelOrifice Sizen/a
Minimum Operating Temperature-20Maximum Operating Pressure103
Maximum Flow Raten/aConfigurationIn-line
Seal MaterialPTFEShapeIn-Line
Actuation TypeManualBody MaterialCarbon Steel
Seat MaterialPTFEHandle TypeLever
DivisionFluid System Connectors DivisionProduct TypeBall Valve
Maximum Operating Temperature425
