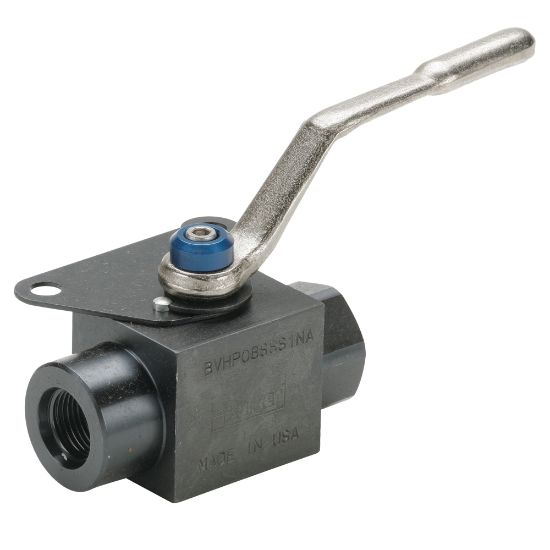

Picture of Industrial Ball Valves - Carbon Steel - VP506HP-12

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Industrial Ball Valves - Carbon Steel - VP506HP-12

Parker's carbon steel ball valves were designed to offer superior performance for applications that require rugged and reliable performance.
Availability:
Backordered
SKU VP506HP-12
$268.43
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEALocking MechanismPadlock
Connection 2 Thread StyleSAE J1926-1Connection 1 Thread Size (inch)1 1/16-12 UNF
HandleSteel LeverShapeIn Line
StyleStraight Thread EndsConnection 2 Thread Size (inch)1 1/16-12 UNF
Maximum Working Pressure (psi)6000Connection 1 Thread StyleSAE J1926-1
Seat MaterialDelrin Molybdenum DisulphideMinimum Operating Temperature-10
Specifications MetN/AOperation Typen/a
Actuation TypeManualConfigurationIn-line
Maximum Operating Pressure413Seal MaterialPTFE
Orifice Sizen/aShapeIn-Line
Maximum Operating Temperature210Product TypeBall Valve
Body MaterialCarbon SteelHandle TypeLever
DivisionFluid System Connectors DivisionMaximum Flow Raten/a
Mounting TypePanelBall MaterialSteel
Connection TypeNPT, Straight Thread, SAE J1926-1FunctionBall Valve
Connection Size3/4
