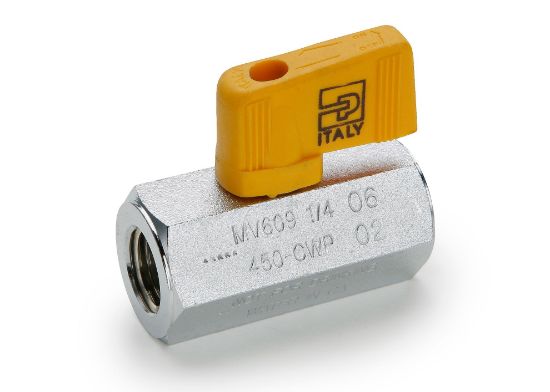

MV609-6-4 - Industrial Ball Valves - Chrome Plated Brass Ball Valves

Parker's chrome plated brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Backordered Estimated Lead Time: 45 days
Partner Available:	4 in stock

SKU MV609-6-4

$37.07/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/4
Connection 1 Thread Size (inch)	3/8	Style	Female Pipe Ends
Connection 1 Thread Style	Female Pipe	Connection 2 Thread Style	Female Pipe
Handle	Polyamide Wedge Lever	Vacuum Rating (inch of Hg)	28
Maximum Working Pressure (Bar)	31	Maximum Working Pressure (psi)	450
Specifications Met	N/A	Seal Material	PTFE
Minimum Operating Temperature	0 °F	Connection Type	NPT
Maximum Operating Pressure	450 psi	Maximum Operating Temperature	93 °C
Function	2-Way	Body Material	Chrome Plated Brass
Actuation Type	Manual	Seat Material	PTFE
Handle Type	Compact	Operation Type	On/Off
Orifice Size	n/a	Mounting Type	In-Line
Configuration	In-line	Lock Type	Non-Locking
Ball Material	Chrome Plated Brass	Connection Size	3/8 x 1/4 inch
Maximum Flow Rate	3.6 Cv
