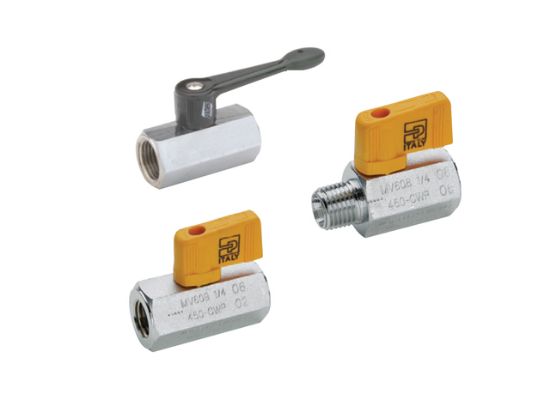

Picture of Industrial Ball Valves - Chrome Plated Brass Ball Valves - MV609-8

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Industrial Ball Valves - Chrome Plated Brass Ball Valves - MV609-8

Parker's chrome plated brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.
Availability:
29 in stock
Decatur, IL12
Springfield, MO3
COLUMBIA, MO3
Peoria, IL3
WICHITA, KS2
Kansas City, KS2
TOPEKA, KS2
Olivette, MO2
SKU MV609-8
$28.23
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 2 Thread Size (inch)1/2
Connection 1 Thread Size (inch)1/2StyleFemale Pipe Ends
Connection 1 Thread StyleFemale PipeConnection 2 Thread StyleFemale Pipe
HandlePolyamide Wedge LeverVacuum Rating (inch of Hg)28
Maximum Working Pressure (Bar)31Maximum Working Pressure (psi)450
DivisionFluid System Connectors DivisionSpecifications MetN/A
Seal MaterialPTFEConnection TypeNPT
Maximum Operating Pressure31 barMaximum Operating Temperature93 °C
Minimum Operating Temperature-17 °CConnection Size1/2 inch
Function2-WayBody MaterialChrome Plated Brass
Actuation TypeManualSeat MaterialPTFE
Handle TypeCompactProduct TypeBall Valve
Operation TypeOn/OffOrifice Sizen/a
Mounting TypeIn-LineConfigurationIn-line
Lock TypeNon-LockingBall MaterialChrome Plated Brass
Maximum Flow Rate6.0 CvUOMEA
Pkg Qty/UOM10 EAPkg Qty10
Thread 11/2 NPTMaterialChrome Plated Brass
Flow Diameter0.39 InchFree Flow CV Factor6
Parker GroupFluid ConnectorParker DivisionFluid Systems Connector (Brass Products)
Thread 1 TypeNPTThread 11/2 NPT
Configuration TypeFemale to FemaleValve TypeBall Valve
MaterialChrome Plated BrassOperating Temperature0°F to +200°F
Max Pressure14 Bar (200 PSI)Flow Diameter0.39 Inch
Material - BallChrome Plated BrassMaterial - Seats/SealsPTFE
Material - HandlePlasticMaterial Stem O-RingFluorocarbon
Free Flow CV Factor6SeriesMV609
