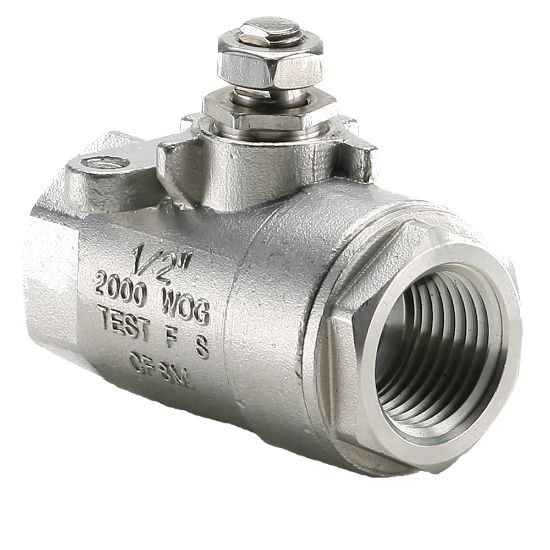

Picture of Industrial Ball Valves - Stainless Steel - V502SS-4-SUB

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Industrial Ball Valves - Stainless Steel - V502SS-4-SUB

Parker's stainless steel ball valves meet the material requirements of NACE MR-01-75.
Availability:
Backordered
SKU V502SS-4-SUB
$98.47
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 2 Thread Size (inch)1/4
Locking MechanismNon-LockingConnection 1 Thread Size (inch)1/4
StyleFemale Pipe EndsConnection 1 Thread StyleFemale Pipe
Connection 2 Thread StyleFemale PipeShapePanel mount
HandlenaDivisionFluid System Connectors Division
Vacuum Pressure Rating28Minimum Operating Temperature0
Seal MaterialPTFEConnection TypeNPT
Maximum Operating Temperature400Connection Size1/4
Function2-WayActuation TypeManual
Seat MaterialPTFEMaximum Operating Pressure2000
Handle Typen/aOperation Typen/a
Maximum Flow Rate4Orifice Size.38
Mounting TypePanelBall MaterialPTFE
Body MaterialCF-8M Stainless SteelShapePanel Mount
Product TypeBall Valve Sub AssemblyConfigurationFemale NPT
Specifications MetNACE MR-01-75
