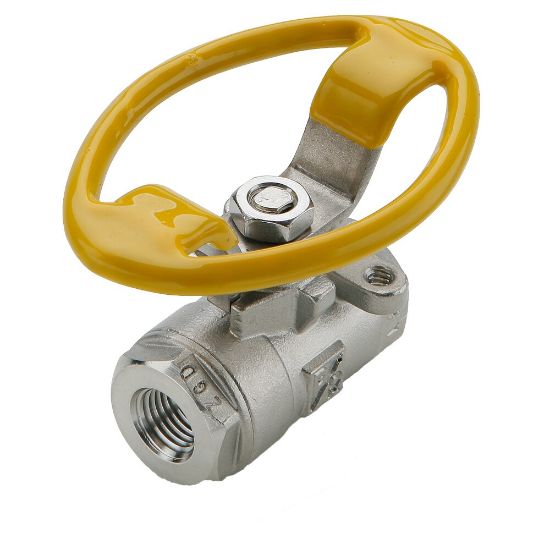

Industrial Ball Valves - Stainless Steel - V502SS-6-21

Name: Industrial Ball Valves - Stainless Steel - V502SS-6-21
SKU: V502SS-6-21

Parker's stainless steel ball valves meet the material requirements of NACE MR-01-75.

Availability:

Backordered

SKU V502SS-6-21

$133.97

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	3/8
Connection 1 Thread Size (inch)	3/8	Locking Mechanism	Non-Locking
Style	Female Pipe Ends	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Shape	Panel mount
Handle	Stainless Steel Oval	Maximum Flow Rate	6
Division	Fluid System Connectors Division	Vacuum Pressure Rating	28
Minimum Operating Temperature	0	Seal Material	PTFE
Connection Type	NPT	Maximum Operating Temperature	400
Connection Size	3/8	Function	2-Way
Actuation Type	Manual	Seat Material	PTFE
Maximum Operating Pressure	2000	Product Type	Ball Valve
Operation Type	n/a	Orifice Size	.38
Mounting Type	Panel	Handle Type	Oval
Ball Material	PTFE	Body Material	CF-8M Stainless Steel
Shape	Panel Mount	Configuration	Female NPT
Specifications Met	NACE MR-01-75

Product resources

Compliance, Certifications & Safety, Literature and Reference Materials

FSC REACH Product Declaration (PDF)

Compliance, Certifications & Safety

Literature and Reference Materials
