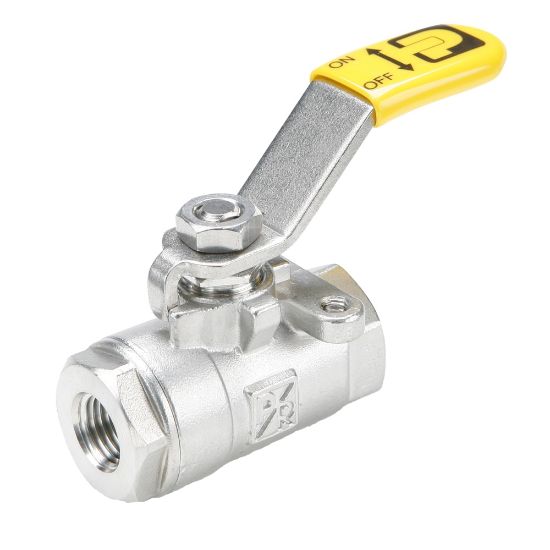

Picture of Industrial Ball Valves - Stainless Steel - VP502SS-8-20

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Industrial Ball Valves - Stainless Steel - VP502SS-8-20

Parker's stainless steel ball valves meet the material requirements of NACE MR-01-75.
Availability:
Backordered
SKU VP502SS-8-20
$132.14
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAHandleShort Stainless Steel
Connection 1 Thread StyleFemale PipeConnection 1 Thread Size (inch)1/2
Connection 2 Thread StyleFemale PipeShapePanel mount
Connection 2 Thread Size (inch)1/2StyleFemale Pipe Ends
Locking MechanismPadlockOrifice Size.50
Maximum Flow Rate14Handle TypeShort
Seat MaterialStainless SteelMinimum Operating Temperature0
Product TypeBall ValveDivisionFluid System Connectors Division
Specifications MetNACE MR-01-75Vacuum Pressure Rating28
Connection Size1/2Connection TypeNPT
Mounting TypePanelConfigurationFemale NPT
Operation Typen/aShapePanel Mount
Ball MaterialPTFEBody MaterialCF-8M Stainless Steel
Seal MaterialPTFEMaximum Operating Pressure2000
Actuation TypeManualFunction2-Way
Maximum Operating Temperature400
