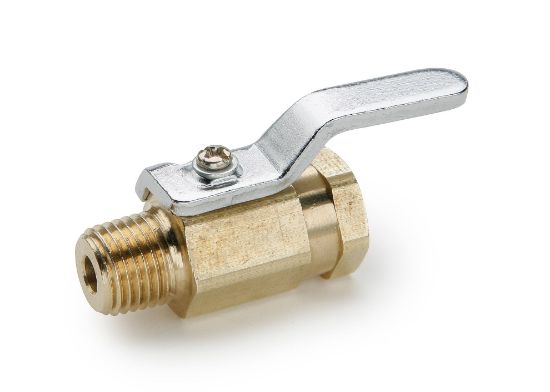

Picture of Industrial Brass Ball Valves - MV708-2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Industrial Brass Ball Valves - MV708-2

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.
Availability:
Backordered
SKU MV708-2
$13.28
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 2 Thread Size (inch)1/8
VentedNoConnection 2 Solder O.D. (inch)na
Maximum Working Pressure (psi)500Locking MechanismNon-Locking
Connection 1 Thread Size (inch)1/8Connection 2 Thread StyleFemale Pipe
StyleFemale/MaleHandleChrome Plated Steel
Connection 1 Thread StyleMale PipeShapeIn Line
Connection 1 Solder O.D. (inch)naDivisionFluid System Connectors Division
Body MaterialBrassSeal MaterialPTFE
Maximum Operating Temperature300 °FConnection TypeNPT
Maximum Operating Pressure34 barMinimum Operating Temperature-35 °F
Connection Size1/8 inchMaximum Flow Raten/a
ShapeIn-LineActuation TypeManual
Seat MaterialPTFEHandle TypeLever
Operation Typen/aProduct TypeMini Ball Valve
Ball MaterialChrome Plated BrassFunction2-Way, Normally Closed, Normally Open
Orifice Size.18 inchConfigurationMale-Female Ports
Mounting TypePanel, In-Line
