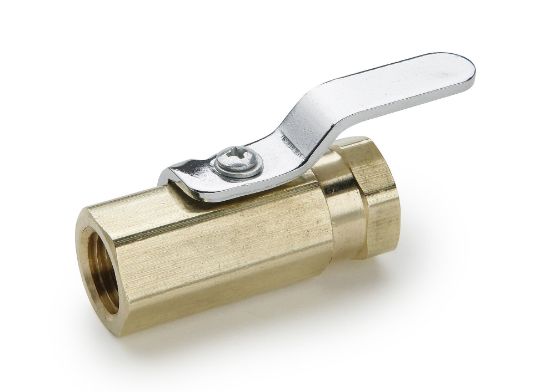

Picture of Industrial Brass Ball Valves - MV709-2

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Industrial Brass Ball Valves - MV709-2

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.
Availability:
Backordered
SKU MV709-2
$13.25
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 2 Thread Size (inch)1/8
VentedNoConnection 2 Solder O.D. (inch)na
Maximum Working Pressure (psi)500Locking MechanismNon-Locking
Connection 1 Thread Size (inch)1/8Connection 1 Thread StyleFemale Pipe
Connection 2 Thread StyleFemale PipeStyleFemale to Female
HandleChrome Plated SteelShapeIn Line
Connection 1 Solder O.D. (inch)naDivisionFluid System Connectors Division
Body MaterialBrassSeal MaterialPTFE
Connection TypeNPTMaximum Operating Pressure34 bar
Minimum Operating Temperature-37 °CConnection Size1/8 inch
Maximum Flow Raten/aShapeIn-Line
Actuation TypeManualSeat MaterialPTFE
Handle TypeLeverOperation Typen/a
Product TypeMini Ball ValveBall MaterialChrome Plated Brass
Function2-Way, Normally Closed, Normally OpenOrifice Size.18 inch
ConfigurationMale-Female PortsMounting TypePanel, In-Line
Maximum Operating Temperature148 °C
