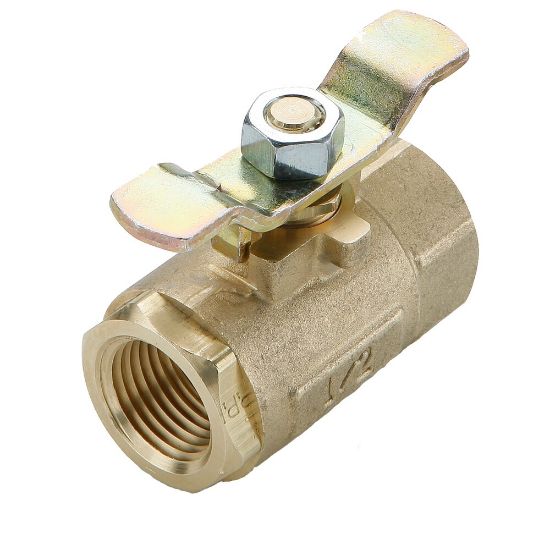

Industrial Brass Ball Valves - V500P-12-04

Name: Industrial Brass Ball Valves - V500P-12-04
SKU: V500P-12-04

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:

Backordered

SKU V500P-12-04

$48.27

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Solder O.D. (inch)	na
Vented	No	Connection 1 Thread Size (inch)	3/4
Shape	In Line	Style	Female to Female
Handle	Tee Handle	Connection 2 Thread Size (inch)	3/4
Connection 1 Thread Style	Female Pipe	Connection 1 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Maximum Working Pressure (psi)	600
Connection 2 Thread Style	Female Pipe	Ball Material	Chrome Plated Brass
Maximum Flow Rate	25	Product Type	Brass Series 500 Ball Valve
Actuation Type	Manual	Configuration	Female-Female PTF Ports
Shape	In-Line	Function	2-Way, Normally Closed, Normally Open
Seal Material	PTFE	Seat Material	PTFE
Body Material	Brass	Maximum Operating Pressure	41
Minimum Operating Temperature	0	Division	Fluid System Connectors Division
Connection Type	NPT, Straight Thread Solder	Handle Type	Lever
Maximum Operating Temperature	350	Mounting Type	Panel, In-Line
Orifice Size	.69	Operation Type	n/a
Connection Size	3/4
