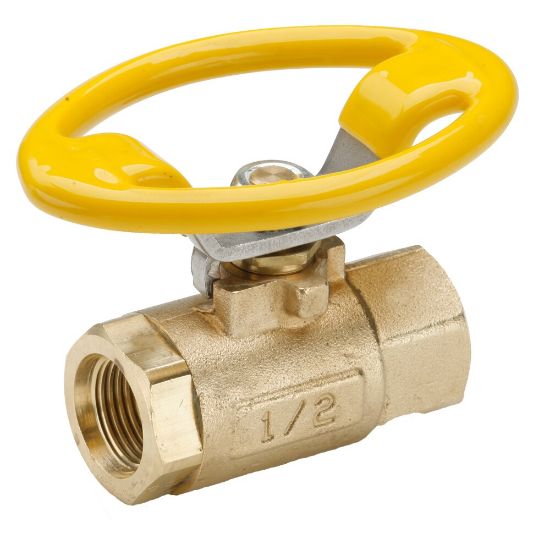

V500P-12-21 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Backordered Estimated Lead Time: 7 days
Partner Available:	8 in stock

SKU V500P-12-21

$81.76/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Handle	Steel Oval
Maximum Working Pressure (psi)	600	Connection 2 Thread Style	Female Pipe
Connection 2 Solder O.D. (inch)	na	Style	Female to Female
Shape	In Line	Connection 1 Thread Size (inch)	3/4
Vented	No	Connection 1 Solder O.D. (inch)	na
Connection 1 Thread Style	Female Pipe	Locking Mechanism	Non-Locking
Connection 2 Thread Size (inch)	3/4	Operation Type	n/a
Maximum Flow Rate	25	Mounting Type	Panel, In-Line
Orifice Size	.69	Maximum Operating Temperature	350
Function	2-Way, Normally Closed, Normally Open	Shape	In-Line
Ball Material	Chrome Plated Brass	Handle Type	Oval
Connection Type	NPT, Straight Thread Solder	Seal Material	PTFE
Configuration	Female-Female PTF Ports	Actuation Type	Manual
Connection Size	3/4	Body Material	Brass
Seat Material	PTFE	Minimum Operating Temperature	0
Maximum Operating Pressure	41
