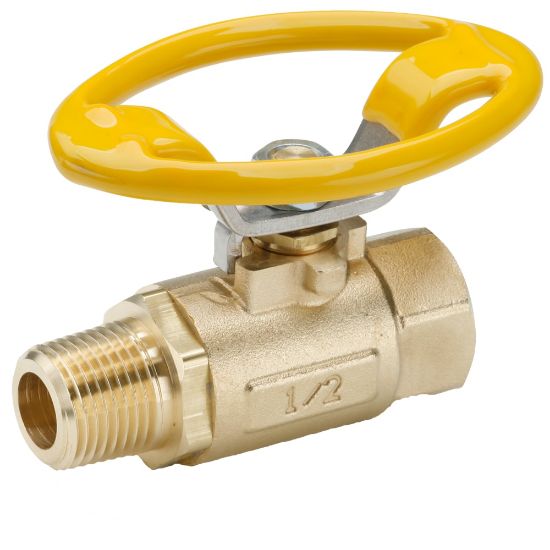

Picture of Industrial Brass Ball Valves - V501P-12-21

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Industrial Brass Ball Valves - V501P-12-21

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.
Availability:
Backordered
SKU V501P-12-21
$71.23
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 1 Solder O.D. (inch)na
Connection 2 Thread Size (inch)3/4Locking MechanismNon-Locking
Connection 1 Thread StyleMale PipeStyleFemale/Male
Connection 2 Thread StyleFemale PipeVentedNo
HandleSteel OvalMaximum Working Pressure (psi)600
Connection 2 Solder O.D. (inch)naConnection 1 Thread Size (inch)3/4
ShapeIn LineBody MaterialBrass
DivisionFluid System Connectors DivisionHandle TypeOval
Connection TypeNPT, Straight Thread SolderMounting TypePanel, In-Line
Maximum Operating Temperature350Connection Size3/4
ConfigurationMale-Female PTF PortsSeat MaterialPTFE
Maximum Operating Pressure41Minimum Operating Temperature0
Ball MaterialChrome Plated BrassOperation Typen/a
Maximum Flow Rate25Product TypeBrass Series 501 Ball Valve
Orifice Size.68Seal MaterialPTFE
Actuation TypeManualFunction2-Way, Normally Closed, Normally Open
ShapeIn-Line
