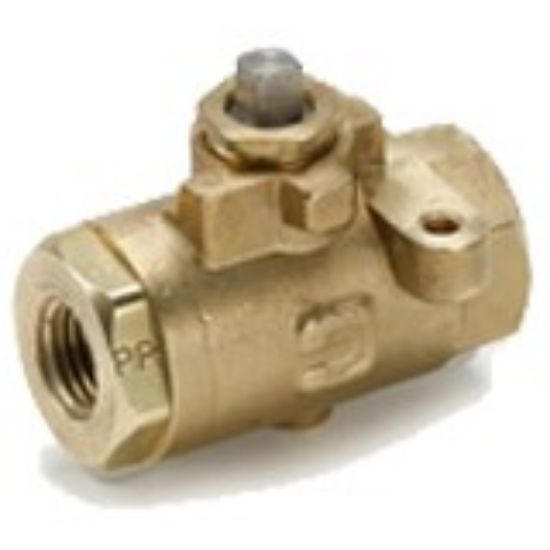

Picture of Industrial Brass Ball Valves - V502P-12-SUB

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Industrial Brass Ball Valves - V502P-12-SUB

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.
Availability:
Backordered
SKU V502P-12-SUB
$96.58
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 1 Thread Size (inch)3/4
Connection 2 Thread Size (inch)3/4Maximum Working Pressure (psi)150
VentedNoConnection 2 Solder O.D. (inch)na
Locking MechanismNon-LockingConnection 1 Thread StyleFemale Pipe
Connection 2 Thread StyleFemale PipeStyleFemale to Female
Connection 1 Solder O.D. (inch)naShapePanel Mount Sub Assembly
HandlenaDivisionFluid System Connectors Division
Body MaterialBrassMinimum Operating Temperature0
Seal MaterialPTFEConnection Size3/4
Maximum Flow Raten/aShapeIn-Line
Actuation TypeManualSeat MaterialPTFE
Maximum Operating Temperature350Maximum Operating Pressure10
Handle Typen/aOperation Typen/a
Ball MaterialChrome Plated BrassFunction2-Way, Normally Closed, Normally Open
Mounting TypePanel, In-LineOrifice Size.68
ConfigurationFemale-Female PTF PortsConnection TypeNPT, Straight Thread Solder
Product TypeActuator Sub-Assembly
