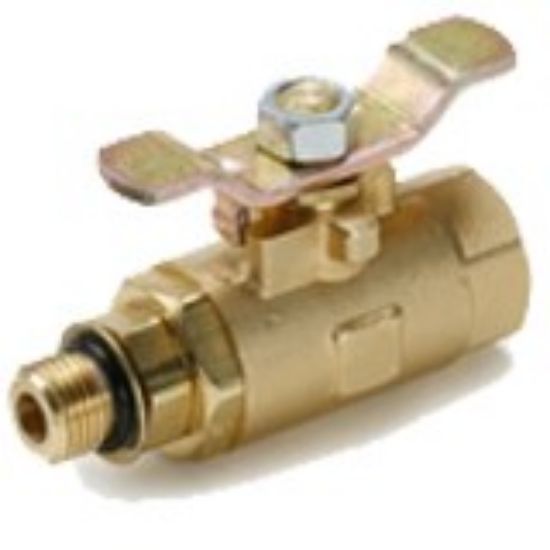

Picture of Industrial Brass Ball Valves - V510P-10-04

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Industrial Brass Ball Valves - V510P-10-04

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.
Availability:
Backordered
SKU V510P-10-04
$128.46
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection 1 Thread Size (inch)7/8-14
Connection 2 Thread Size (inch)7/8-14Maximum Working Pressure (psi)600
VentedNoConnection 2 Solder O.D. (inch)na
Locking MechanismNon-LockingShapeIn Line
Connection 1 Solder O.D. (inch)naHandleSteel Tee
Connection 1 Thread StyleFemale Straight ThreadStyleFemale Straight Thread to Male Straight Thread
Connection 2 Thread StyleMale Straight ThreadDivisionFluid System Connectors Division
Body MaterialBrassMinimum Operating Temperature0
Seal MaterialPTFEConnection Size5/8
ShapeIn-LineActuation TypeManual
Seat MaterialPTFEMaximum Operating Temperature350
Operation Typen/aBall MaterialChrome Plated Brass
Function2-Way, Normally Closed, Normally OpenMounting TypePanel, In-Line
Maximum Operating Pressure41Handle TypeTee
Orifice Size.50Connection TypeNPT, Straight Thread Solder
Product TypeBrass Series 510 Ball ValveConfigurationMale-Female STO SAE J1926 Ports
Maximum Flow Rate7.6
