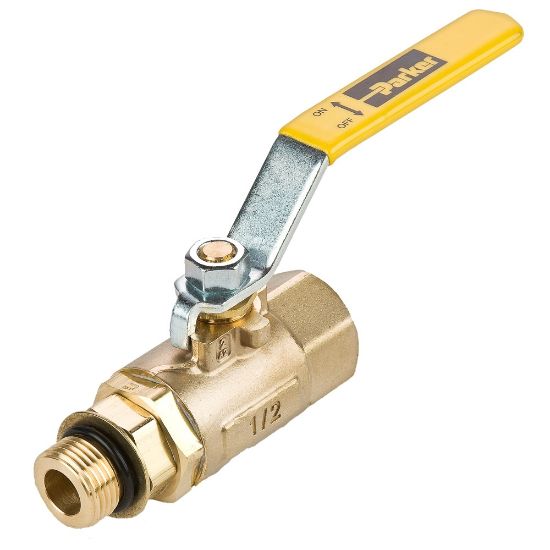

V510P-12 - Industrial Brass Ball Valves

Name: V510P-12 - Industrial Brass Ball Valves
SKU: V510P-12
Price: 171.17 USD
Availability: InStock

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:

4 in stock

Kansas City, KS	3
Springfield, MO	1

Partner Available:

46 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU V510P-12

$171.17/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Thread Size (inch)	1 1/16-12
Connection 2 Thread Size (inch)	1 1/16-12	Maximum Working Pressure (psi)	600
Vented	No	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Shape	In Line
Connection 1 Solder O.D. (inch)	na	Handle	Steel Lever
Connection 1 Thread Style	Female Straight Thread	Style	Female Straight Thread to Male Straight Thread
Connection 2 Thread Style	Male Straight Thread	Body Material	Brass
Minimum Operating Temperature	0	Seal Material	PTFE
Connection Size	3/4	Shape	In-Line
Actuation Type	Manual	Seat Material	PTFE
Maximum Operating Temperature	350	Maximum Flow Rate	13
Handle Type	Lever	Operation Type	n/a
Ball Material	Chrome Plated Brass	Function	2-Way, Normally Closed, Normally Open
Mounting Type	Panel, In-Line	Maximum Operating Pressure	41
Connection Type	NPT, Straight Thread Solder	Orifice Size	.66
Configuration	Male-Female STO SAE J1926 Ports
