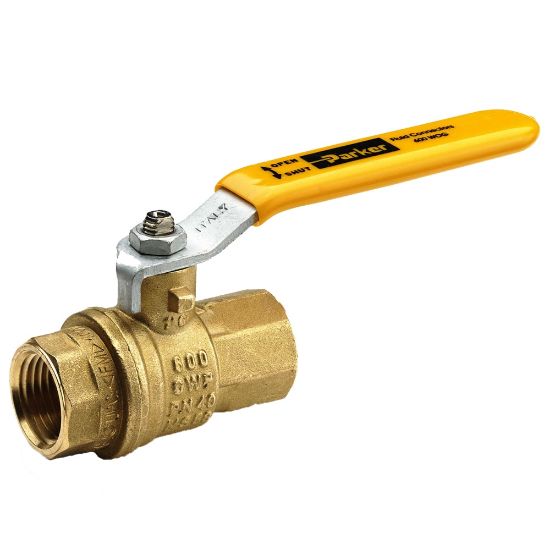

V520P-8 - Industrial Brass Ball Valves

Name: V520P-8 - Industrial Brass Ball Valves
SKU: V520P-8
Price: 20.75 USD
Availability: InStock

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:

54 in stock

Wichita, KS	31
WICHITA, KS	6
Peoria, IL	6
COLUMBIA, MO	5
Kansas City, KS	2
TOPEKA, KS	2
Olivette, MO	2

Partner Available:

469 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU V520P-8

$20.75/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/2
Maximum Working Pressure (psi)	600	Vented	No
Connection 1 Thread Size (inch)	1/2	Connection 2 Solder O.D. (inch)	na
Locking Mechanism	Non-Locking	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Shape	In Line
Connection 1 Solder O.D. (inch)	na	Handle	Steel Lever
Style	Female to Female (Standard Port)	Body Material	Brass
Minimum Operating Temperature	-40	Seal Material	PTFE
Connection Size	1/2	Maximum Flow Rate	n/a
Shape	In-Line	Actuation Type	Manual
Seat Material	PTFE	Maximum Operating Temperature	350
Handle Type	Lever	Operation Type	n/a
Ball Material	Chrome Plated Brass	Function	2-Way, Normally Closed, Normally Open
Mounting Type	Panel, In-Line	Maximum Operating Pressure	41
Connection Type	NPT, Straight Thread Solder	Orifice Size	.60
Configuration	Female-Female NPT Ports
