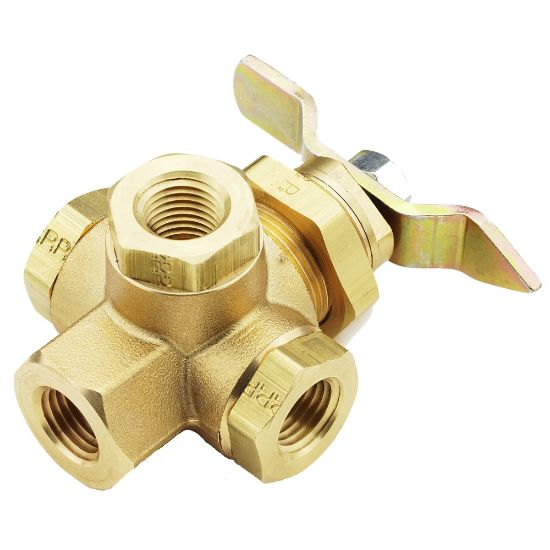

V540P-4 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	2 Limited Stock

SKU V540P-4

$238.10/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/4
Vented	No	Connection 2 Solder O.D. (inch)	na
Maximum Working Pressure (psi)	400	Locking Mechanism	Non-Locking
Connection 1 Thread Size (inch)	1/4	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Style	Female to Female
Connection 1 Solder O.D. (inch)	na	Handle	Steel Lever
Shape	4-Way	Body Material	Brass
Seal Material	PTFE	Minimum Operating Temperature	-20
Connection Size	1/4	Maximum Operating Pressure	27
Maximum Flow Rate	n/a	Actuation Type	Manual
Seat Material	PTFE	Maximum Operating Temperature	350
Operation Type	n/a	Ball Material	Chrome Plated Brass
Function	2-Way, Normally Closed, Normally Open	Orifice Size	.25
Mounting Type	Panel, In-Line	Handle Type	Tee
Connection Type	NPT, Straight Thread Solder	Shape	4-Way Diversion
Configuration	Female-Female-Female-Female Pipe Ends
