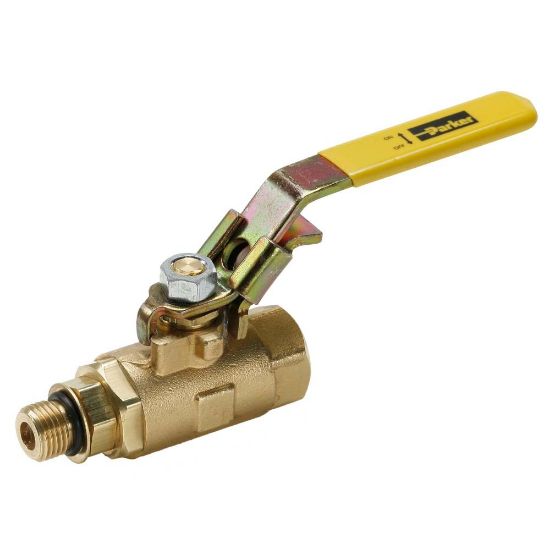

VP510P-4 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Backordered Estimated Lead Time: 77 days
Partner Available:	Backordered

SKU VP510P-4

$72.23/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	7/16-20
Maximum Working Pressure (psi)	600	Connection 1 Thread Size (inch)	7/16-20
Vented	No	Connection 2 Solder O.D. (inch)	na
Shape	In Line	Connection 1 Solder O.D. (inch)	na
Handle	Steel Lever	Connection 1 Thread Style	Female Straight Thread
Style	Female Straight Thread to Male Straight Thread	Connection 2 Thread Style	Male Straight Thread
Locking Mechanism	Padlock	Body Material	Brass
Minimum Operating Temperature	0	Seal Material	PTFE
Connection Size	1/4	Shape	In-Line
Actuation Type	Manual	Seat Material	PTFE
Maximum Operating Temperature	350	Handle Type	Lever
Operation Type	n/a	Ball Material	Chrome Plated Brass
Function	2-Way, Normally Closed, Normally Open	Mounting Type	Panel, In-Line
Maximum Operating Pressure	41	Connection Type	NPT, Straight Thread Solder
Orifice Size	.19	Maximum Flow Rate	.8
Configuration	Male-Female STO SAE J1926
