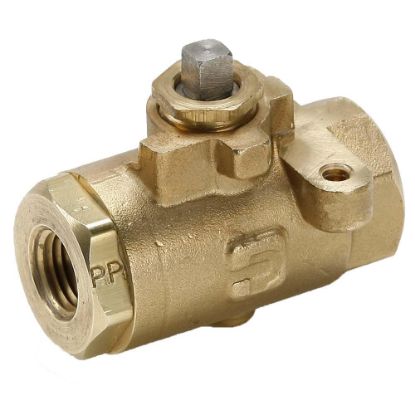

Industrial Brass Ball Valves
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's industrial brass ball valves are designed to provide years of service at an economical price. Manufactured for commercial and general industrial applications these valves offer increased performance over lightweight throwaway valves. These ball valves are intended for use in the fully open or closed positions. Throttling of the valve may result in premature seal failure and/or inability to turn the valve handle.
Parker's brass ball valves are available in a range of styles including:
• Female x Female
• Female x Male
• Panel Mount
• Female Straight Thread x Female Straight Thread
• Solder ends
• Female Straight Thread x Male Straight Thread
• 3 and 4 Way Diversion
• 90? Valves
• Beaded Hose Barb End
• 6 Port Valve
Options for the brass ball valves include:
• Nickel Plating
• Venting
• Padlocking Handles
• Stainless Steel Ball & Stem
• Stainless Steel Handle & Nut
• Tee Handle
• Oval Handle
• Plain Yellow Vinyl Handle Cover
• Actuator Kit
Markets:
• Heavy Duty Truck
• Mobile
• Agriculture
• Construction
• Industrial
Features/Benefits:
• Forged Body for Added Strength
• Chrome Plated Brass Ball
• PTFE Seats and Seals
• Wide Range of Styles
• Quarter Turn Handle Provides Positive Stop Action for Full Shutoff
Applications:
• Fuel Line Shutoffs for Gasoline and Diesel Equipment
• Air Service lines
• Water Service Lines on Capital Equipment
• Plant Design Plumbing Requiring Total Shutoff Capability
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Maximum Working Pressure (psi) | Vented | Connection 2 Solder O.D. (inch) | Locking Mechanism | Connection 1 Thread Style | Connection 2 Thread Style | Style | Connection 1 Solder O.D. (inch) | Connection 1 Thread Size (inch) | Connection 2 Thread Size (inch) | Handle | Shape | Body Material | Minimum Operating Temperature | Seal Material | Connection Size | Shape | Actuation Type | Seat Material | Maximum Operating Temperature | Handle Type | Maximum Flow Rate | Operation Type | Ball Material | Function | Mounting Type | Maximum Operating Pressure | Orifice Size | Configuration | Connection Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| V502P-16 | Backordered | 1 Limited Stock | $86.99/each | EA | 600 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 1 | 1 | Steel Lever | Panel mount | Brass | 0 | PTFE | 1 | In-Line | Manual | PTFE | 350 | Lever | 35 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 41 | .88 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-16-04 | Backordered | Backordered | $88.12/each | EA | 600 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 1 | 1 | Steel Tee | Panel mount | Brass | 0 | PTFE | 1 | In-Line | Manual | PTFE | 350 | Tee | 35 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 41 | .88 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-16-21 | Backordered | Backordered | $111.58/each | EA | 600 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 1 | 1 | Steel Oval | Panel mount | Brass | 0 | PTFE | 1 | In-Line | Manual | PTFE | 350 | Oval | 35 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 41 | .88 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-16-ACT | Backordered | Backordered | $994.74/each | EA | 600 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 1 | 1 | na | Panel mount | Brass | 0 | PTFE | 1 | In-Line | Manual | PTFE | 350 | Lever | n/a | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 41 | .88 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-16-SUB | Backordered | Backordered | $127.06/each | EA | 150 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 1 | 1 | na | Panel Mount Sub Assembly | Brass | 0 | PTFE | 1 | In-Line | Manual | PTFE | 350 | n/a | n/a | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 41 | .88 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-4 | Backordered | Backordered | $39.24/each | EA | 600 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 1/4 | 1/4 | Steel Lever | Panel mount | Brass | 0 | PTFE | 1/4 | In-Line | Manual | PTFE | 350 | Lever | 4 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 41 | .38 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-4-04 | Backordered | Backordered | $48.43/each | EA | 600 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 1/4 | 1/4 | Steel Tee | Panel mount | Brass | 0 | PTFE | 1/4 | In-Line | Manual | PTFE | 350 | Tee | 4 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 41 | .38 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-4-21 | Backordered | 2 Limited Stock | $60.67/each | EA | 600 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 1/4 | 1/4 | Steel Oval | Panel mount | Brass | 0 | PTFE | 1/4 | In-Line | Manual | PTFE | 350 | Oval | 4 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 41 | .38 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-4-ACT | Backordered | Backordered | $1,055.84/each | EA | 150 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 1/4 | 1/4 | na | Panel mount | Brass | 0 | PTFE | 1/4 | In-Line | Manual | PTFE | 350 | Lever | n/a | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 10 | .38 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-4-SUB | Backordered | Backordered | $88.97/each | EA | 150 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 1/4 | 1/4 | na | Panel Mount Sub Assembly | Brass | 0 | PTFE | 1/4 | In-Line | Manual | PTFE | 350 | n/a | n/a | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 10 | .38 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-6 | Backordered | 10 in stock | $42.18/each | EA | 600 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 3/8 | 3/8 | Steel Lever | Panel mount | Brass | 0 | PTFE | 3/8 | In-Line | Manual | PTFE | 350 | Lever | 5.8 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 41 | .38 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-6-04 | Backordered | 32 in stock | $44.63/each | EA | 600 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 3/8 | 3/8 | Steel Tee | Panel mount | Brass | 0 | PTFE | 3/8 | In-Line | Manual | PTFE | 350 | Tee | 5.8 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 41 | .38 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-6-21 | Backordered | 11 in stock | $63.35/each | EA | 600 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 3/8 | 3/8 | Steel Oval | Panel mount | Brass | 0 | PTFE | 3/8 | In-Line | Manual | PTFE | 350 | Oval | 5.8 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 41 | .38 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-6-ACT | Backordered | Backordered | $1,039.40/each | EA | 150 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 3/8 | 3/8 | na | Panel mount | Brass | 0 | PTFE | 3/8 | In-Line | Manual | PTFE | 350 | Lever | n/a | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 10 | .38 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-6-SUB | Backordered | Backordered | $96.24/each | EA | 150 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 3/8 | 3/8 | na | Panel Mount Sub Assembly | Brass | 0 | PTFE | 3/8 | In-Line | Manual | PTFE | 350 | n/a | n/a | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 10 | .38 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-8 | Backordered | 52 in stock | $58.54/each | EA | 600 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 1/2 | 1/2 | Steel Lever | Panel mount | Brass | 0 | PTFE | 1/2 | In-Line | Manual | PTFE | 350 | Lever | 12 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 41 | .50 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-8-04 | Backordered | 1 Limited Stock | $48.42/each | EA | 600 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 1/2 | 1/2 | Steel Tee | Panel mount | Brass | 0 | PTFE | 1/2 | In-Line | Manual | PTFE | 350 | Tee | 12 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 41 | .50 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-8-08 | Backordered | Backordered | $46.83/each | EA | 600 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 1/2 | 1/2 | Unmarked Yellow Vinyl Handle Cover | In Line | Brass | 0 | PTFE | 1/2 | In-Line | Manual | PTFE | 350 | Unmarked yellow vinyl handle cover | 12 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 41 | .50 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-8-21 | Backordered | 7 in stock | $76.14/each | EA | 600 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 1/2 | 1/2 | Steel Oval | Panel mount | Brass | 0 | PTFE | 1/2 | In-Line | Manual | PTFE | 350 | Oval | 12 | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 41 | .50 | Female-Female PTF Ports | NPT, Straight Thread Solder | |
| V502P-8-ACT | Backordered | Backordered | $1,069.95/each | EA | 150 | No | na | Non-Locking | Female Pipe | Female Pipe | Female to Female | na | 1/2 | 1/2 | na | Panel mount | Brass | 0 | PTFE | 1/2 | In-Line | Manual | PTFE | 350 | Lever | n/a | n/a | Chrome Plated Brass | 2-Way, Normally Closed, Normally Open | Panel, In-Line | 10 | .50 | Female-Female PTF Ports | NPT, Straight Thread Solder |
