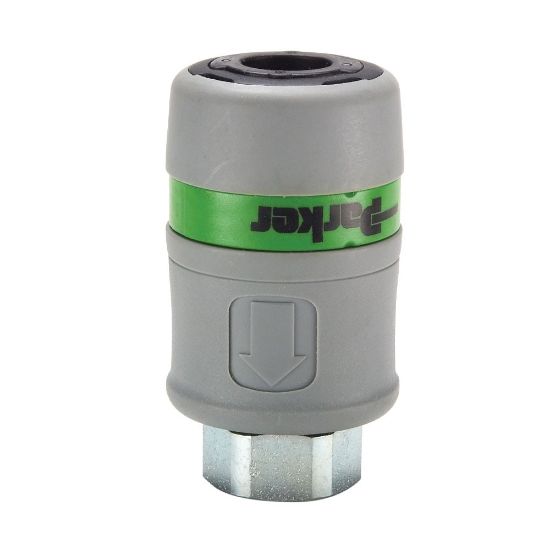

Picture of Industrial & European Interchange, Quick Connect Air Couplers - Tool-Mate Standard Series - PER-251-4FP

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Industrial & European Interchange, Quick Connect Air Couplers - Tool-Mate Standard Series - PER-251-4FP

Parker's non-marking, lightweight, pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air lines require fast and easy connection and disconnection.
Availability:
Backordered
SKU PER-251-4FP
$40.20
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection Thread Size1/4"-18
Thread StyleFemaleBody Size1/4"
Connection TypeFemale, NPTFInterface OptionConnects with RF style nipples
Dimensional Weight0.062320143884892085 lbDivisionQuick Coupling Division
Seal MaterialNitrileCoupling HalfCoupler
Minimum Operating Temperature0 °FMaximum Operating Pressure300 psi
ApplicationAirValve TypeTubular
Maximum Operating Temperature160 °FMediaCompressed Air
Body MaterialPolyamideLock TypePolyacetate Locking Fingers
Sleeve TypePush-to-ConnectPlating TypeGalvanized Steel Port Ends
Specifications MetConnects with RF style nipples
